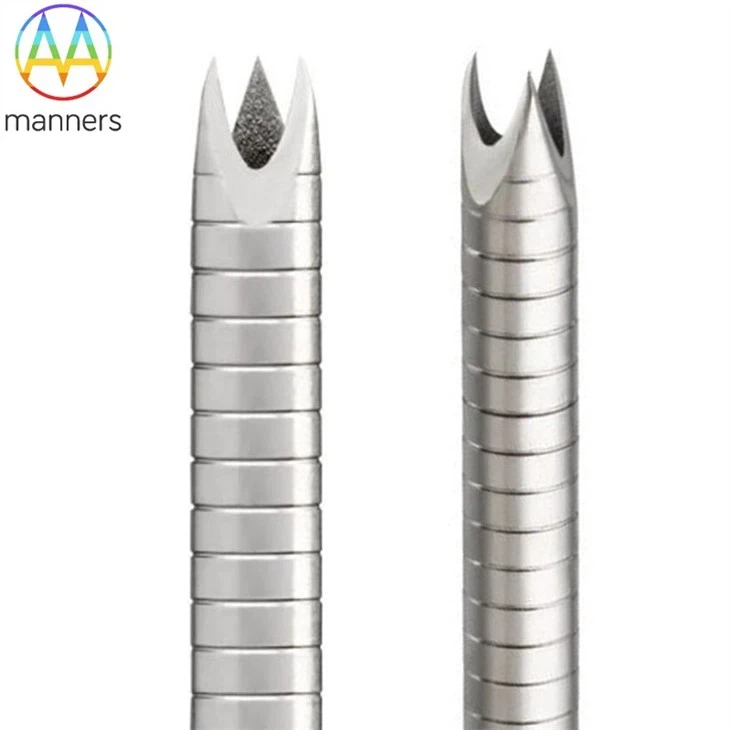

EUS Nitinol Needle
Application: FNA, FNB, Core Biopsy
Material: Nitinol, SS3034, 316
Gauge: 19-25G
Tolerance: +/-0.01mm
Manufacturing: Grinding
Facilities: Grinding Machine
Description
What Is An EUS Nitinol Needle?
The EUS Nitinol Needle is made from Nitinol, a unique material known for its superelastic and shape-memory properties. This material provides enhanced maneuverability in tortuous scope positions and ensures the needle maintains its shape for multiple passes, making it ideal for complex diagnostic and therapeutic procedures guided by Endoscopic Ultrasound (EUS).
In addition to our traditional cobalt-chromium EUS needles, Shenzhen Manners Technology, located in Shenzhen, China, now offers Nitinol-constructed EUS needles. We provide a variety of needle tip designs, such as reverse cutting and side-hole needles, in sizes ranging from 19G to 25G to meet various clinical needs. With advanced manufacturing, strict quality control, and customization options, we deliver high-performance EUS needle solutions to clients worldwide.
Comparison of EUS FNB vs. EUS FNA
EUS FNA (Fine Needle Aspiration) is primarily used to collect cell samples for cytological analysis. Smaller needles, such as 22G and 25G, are ideal for fragile or highly vascular lesions. In contrast, EUS FNB (Fine Needle Biopsy) is used to obtain tissue cores for histological examination and molecular testing. Larger needle sizes, like 19G and 20G, are preferred for lesions that require high-quality tissue samples.
|
Feature |
EUS FNB |
EUS FNA |
|
Sample Type |
Tissue core |
Cell sample |
|
Diagnostic Accuracy |
Higher (suitable for histological and molecular tests) |
Lower (only suitable for cytological examination) |
|
Needle Gauge |
Typically larger (e.g., 19G, 20G) |
Typically smaller (e.g., 22G, 25G) |
|
Procedure Difficulty |
Higher |
Lower |
|
Cost |
Higher |
Lower |
|
Application Scenario |
Lesions requiring histological or molecular testing |
Lesions where cytology is sufficient for diagnosis |
|
Description |
Needle Size |
Sheath Diameter (mm) |
Minimum Channel Size (mm) |
|
FNB Needle Nitinol |
22G |
1.8 |
2.8 |
|
FNB Needle Nitinol |
19G |
1.8 |
2.8 |
|
FNA Needle Nitinol |
22G |
1.8 |
2.8 |
|
FNA Needle Nitinol |
19G |
1.8 |
2.8 |
Applications of EUS Nitinol Needle
The EUS Nitinol Needle integrates both endoscopy and ultrasound technology to offer high-resolution imaging of lesions within the digestive tract and nearby organs. The fine needle is introduced through the working channel of the endoscope and, under ultrasound guidance, is carefully maneuvered through the digestive tract wall to reach the targeted area for sampling or treatment, such as cyst drainage or drug delivery.
This method is frequently used to diagnose lesions in the digestive system, lungs, and other deep organs, including tumors, cysts, lymph nodes, and abnormalities in the pancreas, gastrointestinal tract, liver, and more. It is also used to obtain cell or tissue samples for pathological examination, such as for tumors, cysts, inflammation, and various other conditions.
|
Application |
Needle Size |
Description |
|
General Diagnostic Use |
22G to 25G |
Thinner needles for better maneuverability and minimal discomfort. Ideal for sampling from the stomach, liver, or pancreas. |
|
Tumor Biopsy |
19G to 22G |
Thicker needles with cutting edge to handle denser, fibrous tissues like pancreatic tumors or liver masses, ensuring reliable tissue acquisition. |
|
Cyst or Abscess Aspiration |
19G to 21G |
Needles with a wider lumen to facilitate fluid aspiration from larger cysts or abscesses. Ideal for precise targeting of fluid-filled cavities. |
|
Lymph Node Biopsy |
22G to 25G |
Thinner needles for fine tissue sampling from small or deep-seated lymph nodes, ensure minimal tissue disruption. |
|
Liver or Other Organ Sampling |
19G to 22G |
Slightly thicker needles for liver or similar organ biopsies, offering strength to reach deeper tissues and ensuring effective sample collection. |
EUS Nitinol Needle Product specifics
|
Product Name |
EUS Nitinol Needle |
|
Application |
FNA, FNB, Cyst Drainage, Tumor Treatment |
|
Design Options |
Tri-tip, Echo-tip, Cutting edge |
|
Materials |
Nitinol (Nickel-Titanium Alloy), Stainless Steel (304, 316L) |
|
Hardness |
HRC 22-25 (304), HRC 50-60 (316L) |
|
Diameter |
19G, 20G, 21G,22G,25G |
|
Needle Length |
0 to 8 cm |
|
Tolerance |
+/- 0.01mm |
|
Manufacturing |
Sliding Headstock Lathe, Laser Etching, Grinding |
|
Certifications |
ISO 9001:2015, ISO 13485 |
|
Facilities |
Citizen L12-1M7, Grinding Machine, 5-Axis Laser Cutting Machine |
|
Packing |
PP bag, or tailor-made packing on request |
The EUS Nitinol Needle is made from high-quality materials like cobalt-chromium (Co-Cr), medical-grade stainless steel (304, 316L), Nitinol, and titanium alloys. Manners now offers EUS needles made from Nitinol, chosen for its strength, flexibility, and corrosion resistance. It also meets ISO 10993 and FDA biocompatibility standards. The needle tip or body is equipped with platinum imaging markers for precise positioning under ultrasound or X-ray.
We offer various needle tip designs, including reverse-cutting, side-hole, and grasping needles. Sizes range from 19G to 22G. The 19G is ideal for larger samples, while the 22G is better for delicate or vascular lesions.
Each needle comes with full material certification, ensuring high quality and safety. Our precision machining ensures sharpness and consistency, reducing tissue damage and improving sampling success. Custom-made to order, we provide tailored solutions for your needs. Contact Manners Technology for high-performance EUS Nitinol needles and expert support.
EUS Nitinol Needle Product Flow
The production of EUS Nitinol Needles requires a careful and detailed process, encompassing material selection, precise machining, surface treatment, and rigorous quality control. At Manners Technology, we create high-quality, high-performance needles by constantly improving both design and manufacturing techniques. As technology continues to advance, our production processes are becoming smarter and more efficient.
|
Components |
Process Flow |
Process Name |
Machine Used |
Machine Brand |
Inspection Equipment |
| EUS Nitinol Needle |
1 |
Incoming |
N/A |
N/A |
|
|
2 |
Turning |
Sliding Headstock Lathe |
Citizen L12-1M7 |
Profile Projectors |
|
|
3 |
Grinding |
Grinding Machine |
N/A |
||
|
4 |
Laser Etching |
5-Axis Laser Cutting Machine |
N/A |
||
|
5 |
Electrolytic Polishing |
N/A |
N/A |
||
|
6 |
Ultrasonic Cleaning |
N/A |
N/A |
||
|
7 |
Inspection & packing |
N/A |
N/A |
EUS Nitinol Needle Manufacturing Process
1. Material Selection and Testing: We choose medical-grade stainless steel or nitinol that meets ISO 10993 and FDA standards, and test the raw materials rigorously for quality assurance.
2. Needle Body Forming and Machining: Precision drawing and advanced machining techniques are used to shape the needle body and tip to meet exact specifications.
3. Surface Treatment and Functional Coatings: The needle undergoes high-precision polishing and is coated with PTFE or other materials to reduce friction and increase durability.
4. Imaging Markings and Customization: Platinum or gold coatings are applied to specific areas for enhanced imaging, and laser engraving allows for custom markings.
5. Quality Inspection and Performance Testing: Each needle is thoroughly tested to ensure it meets the required specifications and performs according to clinical standards.
6. Packaging and Delivery: Needles are individually packaged to maintain sterility and moisture protection, with customizable packaging options available.
| process |
|
Description
|
Role
|
Advantages
|
|
Material Selection |
 |
The main shaft is crafted from 304 stainless steel (HRC 22-25) and the needle tip is from cobalt-chromium (Co-Cr) alloy. |
Ensures durability, flexibility, and sharpness for accurate tissue acquisition. |
Provides superior performance, ensuring a long-lasting and reliable needle for clinical procedures. |
|
CNC Turning - Sliding Headstock Lathe |
 |
The needle body is shaped using the Citizen L12-1M7 Sliding Headstock Lathe, providing precision turning. |
Shaping the needle body and achieving the required dimensions for the needle shaft and tip. |
Ensures precision with a tolerance of ±0.005 mm and repeatability of ±0.002 mm, guaranteeing consistent dimensions. |
|
Grinding - Grinding Machine |
 |
After forming, the needle is refined using high-precision grinding. Coarse and fine-grinding wheels shape and sharpen the needle. |
Refines the needle's geometry and sharpness for optimal performance. |
Achieves the desired sharpness and smooth finish, ensuring excellent performance and ease of insertion. |
|
Laser Etching - 5-Axis Laser Cutting Machine |
 |
The needle is engraved with product identifiers and measurement markings using a 5-axis laser cutting machine. |
Etches clear and permanent markings, including lot numbers and measurement scales on the needle. |
Guarantees high precision with tolerances of ±0.01 mm to ±0.001 mm, ensuring clear, permanent, and accurate markings. |
|
Electrolytic Polishing |
 |
The needle undergoes electrolytic polishing to smooth the surface, remove microscopic imperfections, and enhance corrosion resistance. |
Improves surface smoothness, reduces friction, and enhances the needle's resistance to corrosion. |
Provides a smooth finish that enhances the ease of insertion, while also increasing the needle's durability. |
|
Ultrasonic Cleaning |
 |
High-frequency sound waves are used to remove particles and contaminants from the needle's surface. |
Cleans the needle by removing impurities that could compromise patient safety. |
Ensures the needle is free from contaminants, guaranteeing safety and accuracy during procedures. |
|
Inspection & Packing |
 |
Each needle undergoes thorough inspection using precision tools to ensure it meets all quality standards. The needles are securely packed in custom-made boxes. |
Verifies the sharpness, flexibility, and dimensional accuracy before packing. |
Ensures the highest quality, with accurate specifications and reliable packaging for safe delivery. |
Why Choose Manners Technology's EUS Nitinol Needle?
Manners is an expert in the medical device manufacturing field, specializing in the processing of Nitinol. We are committed to providing high-quality, clinical-grade EUS needle solutions to clients worldwide. With 18 core technologies, including five-axis CNC machining and nano-level surface treatment, we transform clinical needs into reliable products. Our offerings range from standard needles to customized solutions, all manufactured with precision in a cleanroom certified by ISO 13485.
We provide flexible and efficient ODM/OEM services to medical brands, channel partners, and healthcare institutions. Leveraging our proprietary Nitinol processing technology, we offer a one-stop service from prototype development to mass production, reducing delivery cycles by 30% compared to industry standards.
By choosing Manners, you will receive reliable products that have undergone over 200 quality control tests, along with strategic-level collaboration covering the entire product lifecycle.
Advanced Equipment
We are equipped with Citizen L12-1M7 lathes, high-precision grinders, and 5-axis laser cutting machines, ensuring high precision and manufacturing efficiency.
Strict Certifications
Our factory is ISO 9001:2015 and ISO 13485 certified, ensuring our products meet international quality standards.
Customization Services
From needle tip design to packaging, we provide comprehensive customization services to meet our customers' specific needs.
Reliable Delivery
Through our partnerships with top-tier logistics providers, we ensure fast, secure, and reliable delivery tailored to your exact requirements.
