Needles

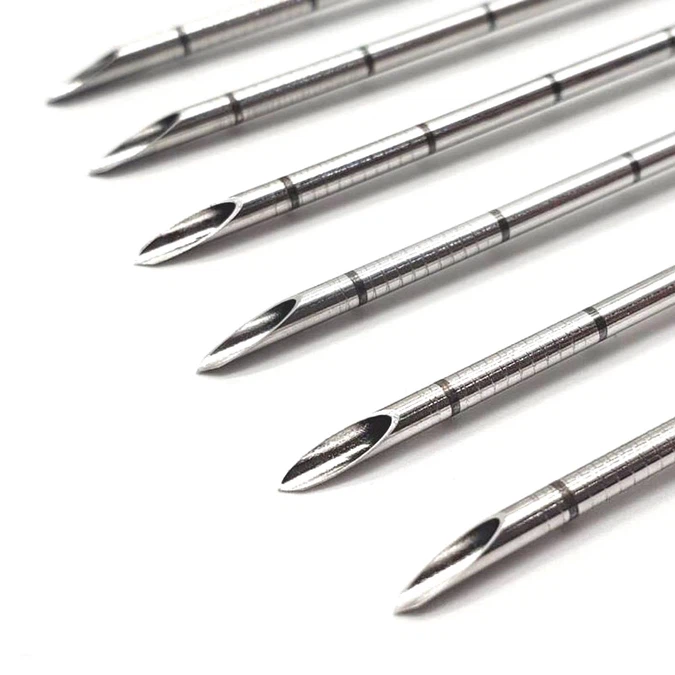

Medical Needles

Manners Technology excels in producing a wide range of medical grade needles: Oocyte Retrieval Needle (both single lumen and double lumen), Biopsy Needle (for body soft tissues like breast, liver, lymph node & bone marrow, and etc.), Spinal Needle (style Whitacre, Tuohy, Sprotte, Quincke and etc.), Meniscus Repair Needle and other specialty needles.



We also support customizing different needle point shapes, needle types, end forming, and keying.



Explore more

Medical Needles
size range
guage standard outside diameter normal wall thin wall extra thin wall ultra thin wall
g millimeters min max min max min max min min
10 3.40 3.300 — 3.500 2.500* — 2.818 2.819 — 3.000
11 3.00 2.950 — 3.150 2.200* — 2.463 2.464 — 2.750
12 2.70 2.650 — 2.850 1.950* — 2.234 2.235 — 2.450
13 2.40 2.300 — 2.500 1.700* — 1.955 1.956 — 2.160
14 2.10 1.950 — 2.150 1.500 — 1.599 1.600 — 1.726 1.727
15 1.80 1.750 — 1.900 1.300 — 1.459 1.460 — 1.559 1.560
16 1.60 1.600 — 1.690 1.100 — 1.282 1.283 — 1.389 1.390
17 1.40 1.400 — 1.510 0.950 — 1.155 1.156 — 1.243 1.244 1.276
18 1.20 1.200 — 1.300 0.790 — 0.909 0.910 — 1.040 1.041
19 1.10 1.030 — 1.100 0.648 — 0.749 0.750 — 0.849 0.850 0.891
20 0.90 0.860 — 0.920 0.560 — 0.634 0.635 — 0.686 0.687 0.713
21 0.80 0.800 — 0.830 0.490 — 0.546 0.547 — 0.609 0.610 0.645
22 0.70 0.698 — 0.730 0.390 — 0.439 0.440 — 0.521 0.522
23 0.60 0.600 — 0.673 0.317 — 0.369 0.370 — 0.459 0.460
24 0.55 0.550 — 0.580 0.280 — 0.342 0.343
25 0.50 0.500 — 0.530 0.232 — 0.291 0.292
26 0.45 0.440 — 0.470 0.232 — 0.291 0.292
27 0.40 0.400 — 0.470 0.184 — 0.240  0.241
28 0.36 0.349 — 0.370 0.133 — 0.189 0.190
29 0.33 0.324 —  0.351 0.133 — 0.189 0.190 0.240 0.265
30 0.30 0.298 — 0.320 0.133 — 0.164 0.165 0.190 0.240
31 0.25 0.254 — 0.267 0.114 — 0.124 0.125 0.146 0.176
32 0.23 0.229 — 0.241 0.089 — 0.104 0.105 0.125 0.146
33 0.20 0.203 — 0.216 0.089 0.105 0.125
34 0.18 0.178 — 0.191 0.064 0.091 0.105
guage standard outside diameter normal wall thin wall extra thin wall ultra thin wall
g Inches min max min max min max min min
10 0.1339 0.1290 — 0.1378 0.0984* — 0.1109 0.1110 — 0.1181
11 0.1181 0.1161 — 0.1240 0.0866* — 0.0970 0.0970 — 0.1083
12 0.1063 0.1043 — 0.1122 0.0768* — 0.0880 0.0880 — 0.0965
13 0.0945 0.0906 — 0.0984 0.0669* — 0.0770 0.0770 — 0.0850
14 0.0827 0.0768 — 0.0846 0.0591 — 0.0630 0.0630 — 0.0680 0.0680
15 0.0709 0.0698 — 0.0748 0.0512 — 0.0574 0.0575 — 0.0614 0.0614
16 0.0630 0.0630 — 0.0665 0.0433 — 0.0505 0.0505 — 0.0547 0.0547
17 0.0551 0.0551 — 0.0594 0.0374 — 0.0455 0.0455 — 0.0489 0.0490 0.0502
18 0.0472 0.0472 — 0.0512 0.0311 — 0.0358 0.0358 — 0.0459 0.0410
19 0.0433 0.0406 — 0.0433 0.0255 — 0.0295 0.0295 — 0.0334 0.0335 0.0351
20 0.0354 0.0339 — 0.0362 0.0220 — 0.0250 0.0250 — 0.0270 0.0270 0.0281
21 0.0315 0.0315 — 0.0327 0.0193 — 0.0215 0.0215 — 0.0240 0.0240 0.0254
22 0.0276 0.0275 — 0.0287 0.0154 — 0.0173 0.0173 — 0.0205 0.0206
23 0.0236 0.0236 — 0.0265 0.0125 — 0.0145 0.0146 — 0.0181 0.0181
24 0.0217 0.0217 — 0.0228 0.0110 — 0.0135 0.0135
25 0.0197 0.0197 — 0.0209 0.0091 — 0.0115 0.0115
26 0.0177 0.0173 — 0.0185 0.0091 — 0.0115 0.0115
27 0.0157 0.0157 — 0.0165 0.0072 — 0.0094  0.0095
28 0.0142 0.0137 — 0.0146 0.0052 — 0.0074 0.0075
29 0.0130 0.0128 —  0.0138 0.0052 — 0.0074 0.0075 0.0094 0.0104
30 0.0118 0.0117 — 0.0126 0.0052 — 0.0065 0.0065 0.0075 0.0094
31 0.0098 0.0100 — 0.0105 0.0045 — 0.0049 0.0049 0.0057 0.0069
32 0.0091 0.0090 — 0.0095 0.0035 — 0.0041 0.0041 0.0049 0.0057
33 0.0079 0.0080 — 0.0085 0.0035 0.0041 0.0049
34 0.0071 0.0070 — 0.0075 0.0025 0.0036 0.0041















  • 11 Gauge 4 Inch Length Ultra-Sharp Trocar Tip Needles

    11 Gauge 4 Inch Length Ultra-Sharp Trocar Tip Needles

    Our Company is proud to introduce our newest and most advanced product, the 11 Gauge 4 Inch Length Ultra-Sharp Trocar Tip Needles. These needles have been specifically designed and manufactured using

    Add to Inquiry
  • EUS Biopsy Needle

    EUS Biopsy Needle

    Application: FNA, FNB, Core Biopsy. Material: Co-Cr, SS3034, 316. Gauge: 19-25G. Tolerance: +/-0.01mm. Manufacturing: Grinding. Facilities: Grinding Machine

    Add to Inquiry
  • Laser Marking Echogenic Needle

    Laser Marking Echogenic Needle

    Our factory specializes in the production of Laser Marking Echogenic Needles, which are innovative medical instruments that have revolutionized the field of interventional medicine. These needles are

    Add to Inquiry
  • Bone Marrow Aspiration Biopsy Puncture Needle

    Bone Marrow Aspiration Biopsy Puncture Needle

    Our Bone Marrow Aspiration Biopsy Puncture Needle is available in different sizes to accommodate various patient needs and requirements. The needle is also designed for precise accuracy, making the

    Add to Inquiry
  • Stainless Steel Laser Marking Echogenic Needles

    Stainless Steel Laser Marking Echogenic Needles

    Product Specification Product Show Ultrasound guided technology has become the practice standard for regional anesthesia. A number of studies have shown that the use of ultrasound can improve the

    Add to Inquiry
  • Disposable Sterile Medical Spinal Needle

    Disposable Sterile Medical Spinal Needle

    Product Specification Technical Specifications Product Show Some complications of lumbar puncture, bloody cerebrospinal fluid problems: The bloody cerebrospinal fluid problem caused by the accidental

    Add to Inquiry
  • 18G Soft Tissue Biopsy Needles

    18G Soft Tissue Biopsy Needles

    Product Specification Product Show Semi-automatic spring loaded biopsy system with selectable penetration depth. Features Adjustable penetration depth (10/20 mm). Echogenic treatment for ultrasound

    Add to Inquiry
  • EUS FNA Nitinol Needle

    EUS FNA Nitinol Needle

    Application: FNA, FNB, Core Biopsy. Material: Nitinol, SS3034, 316. Gauge: 19-25G. Tolerance: +/-0.01mm. Manufacturing: Grinding. Facilities: Grinding Machine

    Add to Inquiry
  • EUS Nitinol Needle

    EUS Nitinol Needle

    Application: FNA, FNB, Core Biopsy. Material: Nitinol, SS3034, 316. Gauge: 19-25G. Tolerance: +/-0.01mm. Manufacturing: Grinding. Facilities: Grinding Machine

    Add to Inquiry
  • EUS Access Needle

    EUS Access Needle

    Application: FNA, FNB, Core Biopsy. Material: Nitinol, SS3034, 316. Gauge: 19-25G. Tolerance: +/-0.01mm. Manufacturing: Grinding. Facilities: Grinding Machine

    Add to Inquiry
  • EUS Based Needle

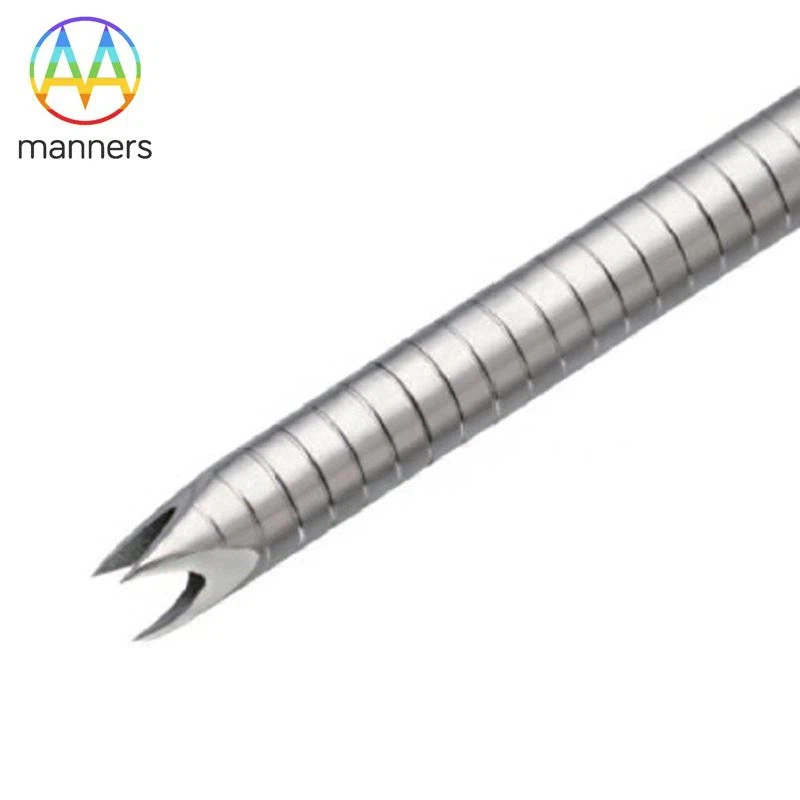

    EUS Based Needle

    Application: FNA, FNB, Core Biopsy. Material: Nitinol, SS3034, 316. Gauge: 19-25G. Tolerance: +/-0.01mm. Manufacturing: Grinding. Facilities: Grinding Machine

    Add to Inquiry
  • EUS FNB Needle

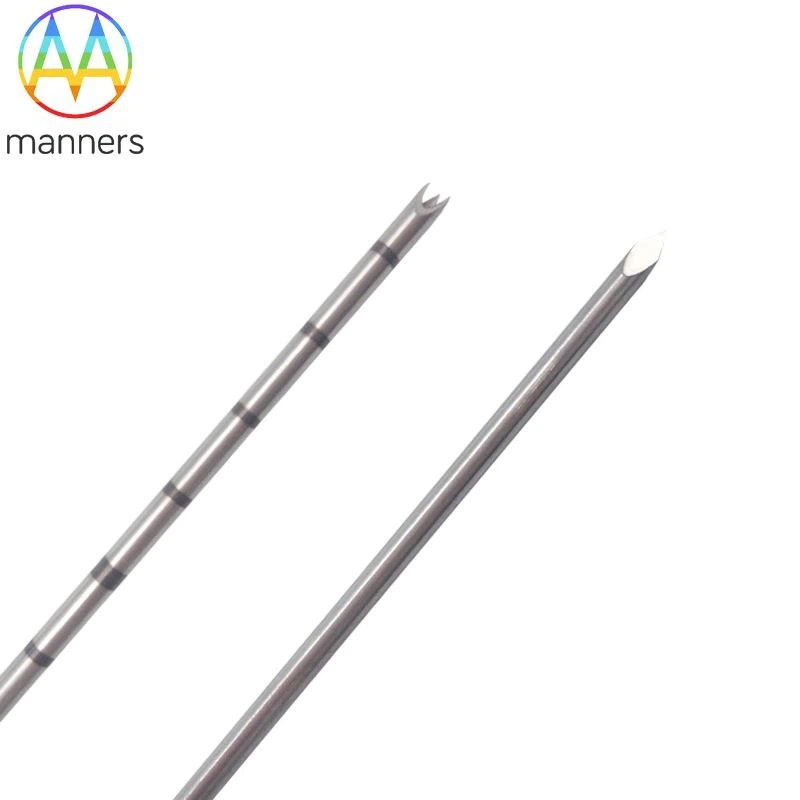

    EUS FNB Needle

    Application: FNB, Biopsy, Core Biopsy. Material: Nitinol, SS3034, 316. Gauge: 19-25G. Tolerance: +/-0.01mm. Manufacturing: Grinding. Facilities: Grinding Machine

    Add to Inquiry
