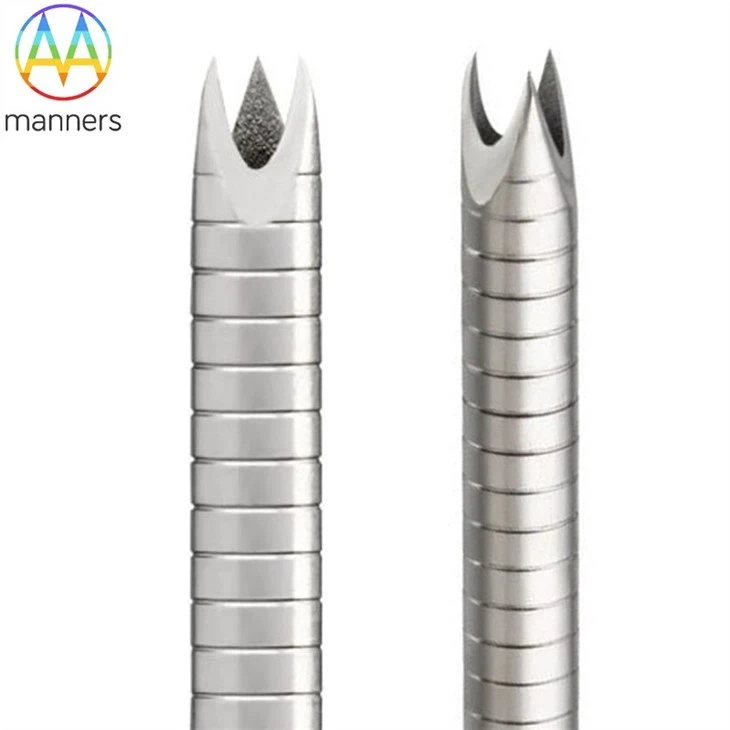

EUS FNA Nitinol Needle
Application: FNA, FNB, Core Biopsy
Material: Nitinol, SS3034, 316
Gauge: 19-25G
Tolerance: +/-0.01mm
Manufacturing: Grinding
Facilities: Grinding Machine
Description
What Is An EUS FNA Nitinol Needle?
The EUS FNA Nitinol Needle is a medical device specifically designed for diagnostic and therapeutic procedures under endoscopic ultrasound (EUS) guidance. These needles play a crucial role in the diagnosis and treatment of lesions in areas such as the pancreas, gastrointestinal tract, and mediastinum.
Nitinol is a shape-memory alloy made of nickel and titanium. This alloy can return to its original shape after being deformed by external forces. It is ideal for medical instruments (such as EUS needles) that require repeated bending and deformation, maintaining flexibility in complex endoscopic passages.
Manners Technology, headquartered in Shenzhen, China, is a leading OEM manufacturer of medical devices, specializing in the research and production of EUS FNA Nitinol Needles. We offer a variety of needle tip designs (such as reverse-cutting needles and side-hole needles) and sizes (19G, 20G, 22G, 25G) to meet the diverse needs of different lesions and clinical requirements. With advanced manufacturing processes, strict quality control, and flexible customization capabilities, we are committed to providing high-performance, reliable EUS needle solutions to clients worldwide.
Comparison of EUS FNB vs. EUS FNA
EUS FNA (Fine Needle Aspiration) is primarily used to collect cell samples for cytological analysis. Finer needles, such as 22G and 25G, are particularly suitable for delicate or highly vascular lesions. On the other hand, EUS FNB (Fine Needle Biopsy) is used to obtain tissue cores for histological evaluation and molecular testing. For lesions requiring high-quality tissue samples, coarser needles, such as 19G and 20G, are preferred.
|
Feature |
EUS FNB |
EUS FNA |
|
Sample Type |
Tissue core |
Cell sample |
|
Diagnostic Accuracy |
Higher (suitable for histological and molecular tests) |
Lower (only suitable for cytological examination) |
|
Needle Gauge |
Typically larger (e.g., 19G, 20G) |
Typically smaller (e.g., 22G, 25G) |
|
Procedure Difficulty |
Higher |
Lower |
|
Cost |
Higher |
Lower |
|
Application Scenario |
Lesions requiring histological or molecular testing |
Lesions where cytology is sufficient for diagnosis |
|
Description |
Needle Size |
Sheath Diameter (mm) |
Minimum Channel Size (mm) |
|
FNB Needle Nitinol |
22G |
1.8 |
2.8 |
|
FNB Needle Nitinol |
19G |
1.8 |
2.8 |
|
FNA Needle Nitinol |
22G |
1.8 |
2.8 |
|
FNA Needle Nitinol |
19G |
1.8 |
2.8 |
Applications of EUS FNA Nitinol Needle
The EUS FNA Nitinol Needle combines endoscopic technology and ultrasound imaging to provide high-resolution, real-time images of lesions in the digestive tract and surrounding organs. The fine needle is inserted through the working channel of the endoscope and, under ultrasound guidance, precisely passes through the digestive tract wall to reach the target area for sampling or therapeutic procedures, such as cyst drainage or drug injection.
This method is widely used for the diagnosis of lesions in the digestive system, lungs, and other deep organs, including tumors, cysts, lymphadenopathy, as well as abnormalities in the pancreas, gastrointestinal tract, liver, and other areas. It is also used to obtain cell or tissue samples for pathological examination, assisting in the diagnosis of tumors, cysts, inflammation, and other diseases.
|
Application |
Needle Size |
Description |
|
General Diagnostic Use |
22G to 25G |
Thinner needles for better maneuverability and minimal discomfort. Ideal for sampling from the stomach, liver, or pancreas. |
|
Tumor Biopsy |
19G to 22G |
Thicker needles with cutting edge to handle denser, fibrous tissues like pancreatic tumors or liver masses, ensuring reliable tissue acquisition. |
|
Cyst or Abscess Aspiration |
19G to 21G |
Needles with a wider lumen to facilitate fluid aspiration from larger cysts or abscesses. Ideal for precise targeting of fluid-filled cavities. |
|
Lymph Node Biopsy |
22G to 25G |
Thinner needles for fine tissue sampling from small or deep-seated lymph nodes, ensure minimal tissue disruption. |
|
Liver or Other Organ Sampling |
19G to 22G |
Slightly thicker needles for liver or similar organ biopsies, offering strength to reach deeper tissues and ensuring effective sample collection. |
EUS FNA Nitinol Needle Product specifics
|
Product Name |
EUS FNA Nitinol Needle |
|
Application |
FNA, FNB, Cyst Drainage, Tumor Treatment |
|
Design Options |
Tri-tip, Echo-tip, Cutting edge |
|
Materials |
Nitinol (Nickel-Titanium Alloy), Stainless Steel (304, 316L) |
|
Hardness |
HRC 22-25 (304), HRC 50-60 (316L) |
|
Diameter |
19G, 20G, 21G,22G,25G |
|
Needle Length |
0 to 8 cm |
|
Tolerance |
+/- 0.01mm |
|
Manufacturing |
Sliding Headstock Lathe, Laser Etching, Grinding |
|
Certifications |
ISO 9001:2015, ISO 13485 |
|
Facilities |
Citizen L12-1M7, Grinding Machine, 5-Axis Laser Cutting Machine |
|
Packing |
PP bag, or tailor-made packing on request |
The EUS FNA Nitinol Needle is made from high-quality materials such as cobalt-chromium (Co-Cr), medical-grade stainless steel (304, 316L), Nitinol, and titanium alloys. We specifically choose medical-grade stainless steel and Nitinol for their excellent strength, flexibility, and corrosion resistance, while ensuring compliance with ISO 10993 and FDA biocompatibility standards to guarantee safety and reliability.
Variety of Needle Tip Designs
- Reverse-Cutting Needle: The needle tip is designed with a reverse-cutting slot to easily cut tissue during insertion.
- Side-Hole Needle: The needle tip has a side hole, allowing tissue to enter the needle lumen more effectively.
- Grasping Needle: Equipped with a mechanism to actively capture and secure tissue, suitable for sampling complex lesions.
Various Needle Sizes
- Common sizes include 19G, 20G, and 22G.
- 19G: Suitable for obtaining larger tissue samples, but more challenging to handle.
- 22G: Ideal for fragile or vascular-rich lesions, offering more flexibility in handling.
Imaging Markers
- The needle tip or body is equipped with platinum imaging markers, aiding in precise positioning under ultrasound or X-ray.
At Manners Technology, we are committed to providing high-performance, reliable EUS FNA Nitinol needles to our global clients. For custom orders or more information, feel free to contact us, and our expert team will provide professional support.
EUS FNA Nitinol Needle Product Flow
The manufacturing of the EUS FNA Nitinol Needle is a highly precise process, covering material selection, precision machining, surface treatment, and strict quality control. At Manners Technology, we produce high-quality, high-performance needles by continuously optimizing our design and manufacturing processes. With ongoing technological advancements, our production process is evolving toward smarter and more efficient methods, ensuring that every needle meets the highest performance and safety standards.
|
Components |
Process Flow |
Process Name |
Machine Used |
Machine Brand |
Inspection Equipment |
| EUS FNA Nitinol Needle |
1 |
Incoming |
N/A |
N/A |
|
|
2 |
Turning |
Sliding Headstock Lathe |
Citizen L12-1M7 |
Profile Projectors |
|
|
3 |
Grinding |
Grinding Machine |
N/A |
||
|
4 |
Laser Etching |
5-Axis Laser Cutting Machine |
N/A |
||
|
5 |
Electrolytic Polishing |
N/A |
N/A |
||
|
6 |
Ultrasonic Cleaning |
N/A |
N/A |
||
|
7 |
Inspection & packing |
N/A |
N/A |
EUS FNA Nitinol Needle Manufacturing Process
1. Material Selection and Testing: We select medical-grade stainless steel or Nitinol that meets ISO 10993 and FDA standards. The raw materials undergo strict chemical composition and physical performance testing to ensure high quality and biocompatibility.
2. Needle Body Forming and Machining: Using precision drawing technology and advanced machining processes, the materials are shaped into slender needle bodies and the needle tip is precisely formed to meet micron-level accuracy requirements.
3. Surface Treatment and Functional Coatings: The needle body undergoes high-precision polishing to minimize surface roughness, and is coated with Polytetrafluoroethylene (PTFE) or other functional coatings to reduce friction and enhance durability.
4. Imaging Markings and Customization: Platinum or gold coatings are applied to specific areas of the needle tip or body as imaging markers to facilitate precise positioning under ultrasound or X-ray. Additionally, laser engraving technology is used to customize markings such as size and brand.
5. Quality Inspection and Performance Testing: Each needle undergoes rigorous size inspection, puncture force testing, flexibility testing, and imaging marker verification to ensure it meets design specifications and clinical standards.
6. Packaging and Delivery: Each needle is individually packaged in a PP bag to ensure sterility and moisture protection. Custom packaging solutions are also available to meet specific customer requirements.
| process |
|
Description
|
Role
|
Advantages
|
|
Material Selection |
 |
The main shaft is crafted from 304 stainless steel (HRC 22-25) and the needle tip is from cobalt-chromium (Co-Cr) alloy. |
Ensures durability, flexibility, and sharpness for accurate tissue acquisition. |
Provides superior performance, ensuring a long-lasting and reliable needle for clinical procedures. |
|
CNC Turning - Sliding Headstock Lathe |
 |
The needle body is shaped using the Citizen L12-1M7 Sliding Headstock Lathe, providing precision turning. |
Shaping the needle body and achieving the required dimensions for the needle shaft and tip. |
Ensures precision with a tolerance of ±0.005 mm and repeatability of ±0.002 mm, guaranteeing consistent dimensions. |
|
Grinding - Grinding Machine |
 |
After forming, the needle is refined using high-precision grinding. Coarse and fine-grinding wheels shape and sharpen the needle. |
Refines the needle's geometry and sharpness for optimal performance. |
Achieves the desired sharpness and smooth finish, ensuring excellent performance and ease of insertion. |
|
Laser Etching - 5-Axis Laser Cutting Machine |
 |
The needle is engraved with product identifiers and measurement markings using a 5-axis laser cutting machine. |
Etches clear and permanent markings, including lot numbers and measurement scales on the needle. |
Guarantees high precision with tolerances of ±0.01 mm to ±0.001 mm, ensuring clear, permanent, and accurate markings. |
|
Electrolytic Polishing |
 |
The needle undergoes electrolytic polishing to smooth the surface, remove microscopic imperfections, and enhance corrosion resistance. |
Improves surface smoothness, reduces friction, and enhances the needle's resistance to corrosion. |
Provides a smooth finish that enhances the ease of insertion, while also increasing the needle's durability. |
|
Ultrasonic Cleaning |
 |
High-frequency sound waves are used to remove particles and contaminants from the needle's surface. |
Cleans the needle by removing impurities that could compromise patient safety. |
Ensures the needle is free from contaminants, guaranteeing safety and accuracy during procedures. |
|
Inspection & Packing |
 |
Each needle undergoes thorough inspection using precision tools to ensure it meets all quality standards. The needles are securely packed in custom-made boxes. |
Verifies the sharpness, flexibility, and dimensional accuracy before packing. |
Ensures the highest quality, with accurate specifications and reliable packaging for safe delivery. |
Why Choose Manners Technology's EUS FNA Nitinol Needle?
At Manners Technology, we focus on precision manufacturing and innovative technology, committed to providing high-quality, high-performance EUS FNA Nitinol needles to clients worldwide. We offer cost-effective OEM/ODM services to medical device brands, distributors, and healthcare institutions, helping our customers stand out in a competitive market. Whether it's standardized products or customized solutions, we deliver exceptional quality and professional service to meet your specific needs. Choosing us means choosing unparalleled precision and reliability!
We provide flexible and efficient ODM/OEM services to medical brands, channel partners, and healthcare institutions. Leveraging our proprietary Nitinol processing technology, we offer a one-stop service from prototype development to mass production, reducing delivery cycles by 30% compared to industry standards.
By choosing Manners, you will receive reliable products that have undergone over 200 quality control tests, along with strategic-level collaboration covering the entire product lifecycle.
Advanced Equipment
We are equipped with Citizen L12-1M7 lathes, high-precision grinders, and 5-axis laser cutting machines, ensuring high precision and manufacturing efficiency.
Strict Certifications
Our factory is ISO 9001:2015 and ISO 13485 certified, ensuring our products meet international quality standards.
Customization Services
From needle tip design to packaging, we provide comprehensive customization services to meet our customers' specific needs.
Reliable Delivery
Through our partnerships with top-tier logistics providers, we ensure fast, secure, and reliable delivery tailored to your exact requirements.
