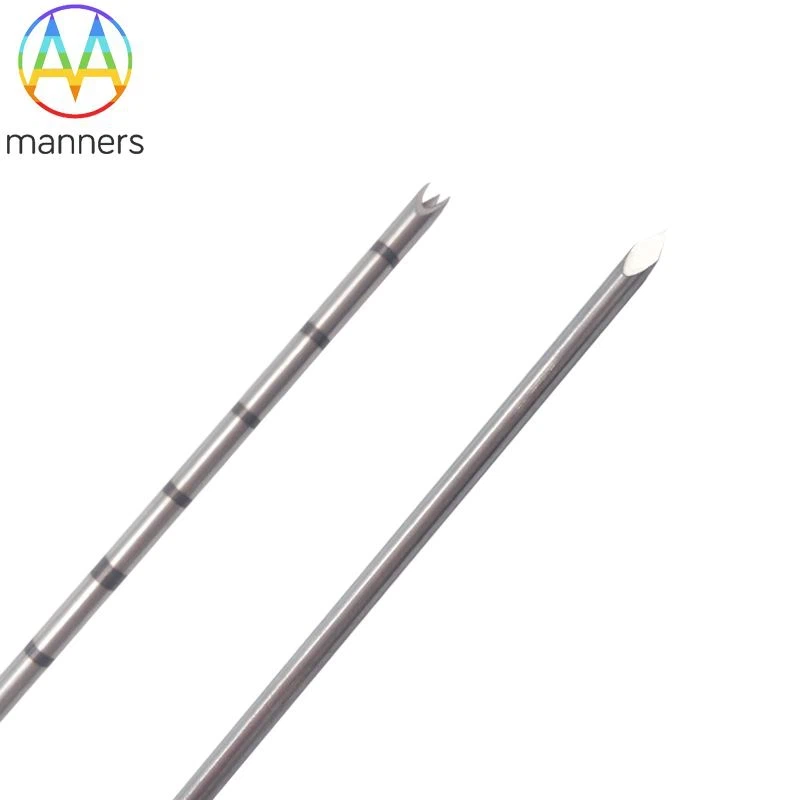

EUS FNB Needle
Application: FNB, Biopsy, Core Biopsy
Material: Nitinol, SS3034, 316
Gauge: 19-25G
Tolerance: +/-0.01mm
Manufacturing: Grinding
Facilities: Grinding Machine
Description
What Is An EUS FNB Needle?
The EUS FNB Needle (Endoscopic Ultrasound-Guided Fine Needle Biopsy Needle) is a medical instrument used to obtain tissue samples under endoscopic ultrasound (EUS) guidance. Unlike the EUS FNA (Fine Needle Aspiration) needle, which is designed to collect only cell samples, the EUS FNB needle is specifically engineered to retrieve high-quality tissue cores. This is particularly beneficial for enhancing the accuracy of pathological diagnoses, especially when histological analysis or molecular testing is required.
This needle is intended for extracting tissue or cells for further examination, and it is primarily used for detecting cancer or other diseases. It is particularly useful for diagnosing the nature of tumors, inflammation, or other abnormalities. In some cases, the EUS FNB Needle may also be employed to locate and evaluate lumps or other unusual findings within the body.
Comparison of EUS FNB vs. EUS FNA
|
Feature |
EUS FNB |
EUS FNA |
|
Sample Type |
Tissue core |
Cell sample |
|
Diagnostic Accuracy |
Higher (suitable for histological and molecular tests) |
Lower (only suitable for cytological examination) |
|
Needle Gauge |
Typically larger (e.g., 19G, 20G) |
Typically smaller (e.g., 22G, 25G) |
|
Procedure Difficulty |
Higher |
Lower |
|
Cost |
Higher |
Lower |
|
Application Scenario |
Lesions requiring histological or molecular testing |
Lesions where cytology is sufficient for diagnosis |
role of eUS fNB needles
|
Application |
Needle Size |
Description |
|
General Diagnostic Use |
22G to 25G |
Thinner needles for better maneuverability and minimal discomfort. Ideal for sampling from the stomach, liver, or pancreas. |
|
Tumor Biopsy |
19G to 22G |
Thicker needles with cutting edge to handle denser, fibrous tissues like pancreatic tumors or liver masses, ensuring reliable tissue acquisition. |
|
Cyst or Abscess Aspiration |
19G to 21G |
Needles with a wider lumen to facilitate fluid aspiration from larger cysts or abscesses. Ideal for precise targeting of fluid-filled cavities. |
|
Lymph Node Biopsy |
22G to 25G |
Thinner needles for fine tissue sampling from small or deep-seated lymph nodes, ensure minimal tissue disruption. |
|
Liver or Other Organ Sampling |
19G to 22G |
Slightly thicker needles for liver or similar organ biopsies, offering strength to reach deeper tissues and ensuring effective sample collection. |
EUS FNB Needle Product specifics
|
Product Name |
EUS FNB Needle |
|
Application |
FNB, Core Biopsy, Injection, Cyst Drainage, Tumor Treatment |
|
Design Options |
Tri-tip, Echo-tip, Cutting edge |
|
Materials |
Nitinol (Nickel-Titanium Alloy), Stainless Steel (304, 316L) |
|
Hardness |
HRC 22-25 (304), HRC 50-60 (316L) |
|
Diameter |
19G, 20G, 21G,22G,25G |
|
Needle Length |
0 to 8 cm |
|
Tolerance |
+/- 0.01mm |
|
Manufacturing |
Sliding Headstock Lathe, Laser Etching, Grinding |
|
Certifications |
ISO 9001:2015, ISO 13485 |
|
Facilities |
Citizen L12-1M7, Grinding Machine, 5-Axis Laser Cutting Machine |
|
Packing |
PP bag, or tailor-made packing on request |
EUS FNB needles are typically made from materials such as cobalt-chromium (Co-Cr), medical-grade stainless steel (304, 316L), Nitinol, or titanium alloy. These materials offer high strength, corrosion resistance, and flexibility.

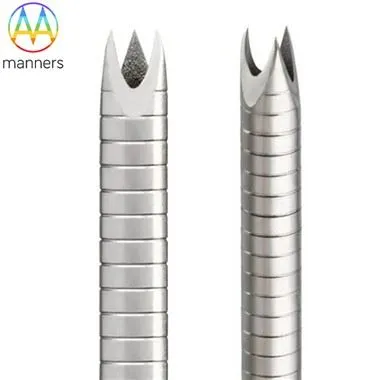

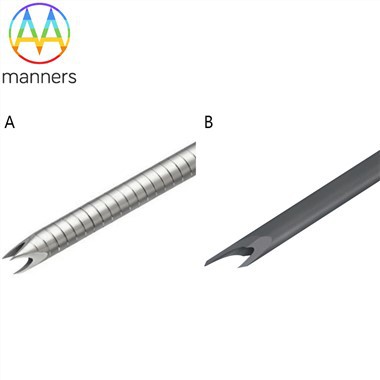

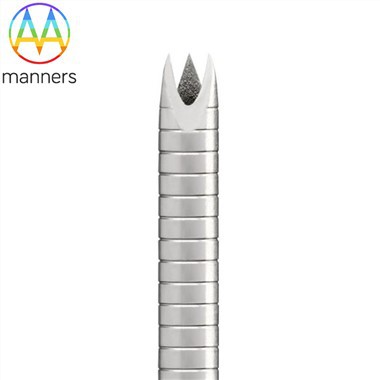

Common needle tip types for FNB needles include:
- Reverse cutting needles: With reverse cutting slots on the tip to facilitate tissue cutting during puncture.
- Side-hole needles: Featuring side holes on the tip for easier tissue entry into the needle cavity.
- Grasping needles: Designed with a grasping mechanism to capture tissue actively.
Common needle gauges are 19G, 20G, and 22G. Larger gauges (e.g., 19G) are ideal for obtaining larger tissue samples but are more difficult to maneuver. Smaller gauges (e.g., 22G) are better suited for fragile or vascular-rich lesions. The needle tip or body may also feature imaging markers (e.g., platinum coatings) to assist in localization under ultrasound or X-ray.
At Manners Technology, we provide complete material certifications for each component of our EUS FNB needles, ensuring compliance with ISO 10993 or FDA biocompatibility standards. Please note that these needles are custom-made products, not standard items. Manners specializes in providing tailored solutions to meet your specific needs. Contact us for custom orders and expert support.
EUS FNB Needle Product Flow
The manufacturing of EUS FNB needles is a complex process involving material selection, precision machining, surface treatment, and quality control. By optimizing design and manufacturing techniques, high-quality, high-performance needles are produced. With continuous technological advancements, the manufacturing process at Manners Technology has become increasingly intelligent and efficient.
First, we select medical-grade materials that meet industry standards. The material is then drawn into a slender needle body to ensure uniform diameter. This is followed by cutting and shaping to the required length, with the needle tip processed into the desired form (e.g., bevel, reverse cutting slots). The needle body is polished to minimize surface roughness. After basic processing, imaging markers such as platinum or gold coatings are applied to specific areas of the needle tip or body. Finally, we conduct quality inspection and performance testing to ensure the needle's diameter, length, and tip shape meet design specifications, while also testing the puncturing force, flexibility, and imaging effectiveness.
At Manners, we use advanced technologies such as sliding headstock lathes, laser engraving, and grinding to produce EUS FNB needles, with a tolerance of +/- 0.01 mm. Our factory is certified under ISO 9001:2015 and ISO 13485 and is equipped with state-of-the-art machinery, including Citizen L12-1M7 lathes, grinding machines, and 5-axis laser cutters. Each needle is carefully packaged in a PP bag, and custom packaging is available upon request to meet your specific needs.
|
Components |
Process Flow |
Process Name |
Machine Used |
Machine Brand |
Inspection Equipment |
|
EUS FNB Needle |
1 |
Incoming |
N/A |
N/A |
|
|
2 |
Turning |
Sliding Headstock Lathe |
Citizen L12-1M7 |
Profile Projectors |
|
|
3 |
Grinding |
Grinding Machine |
N/A |
||
|
4 |
Laser Etching |
5-Axis Laser Cutting Machine |
N/A |
||
|
5 |
Electrolytic Polishing |
N/A |
N/A |
||
|
6 |
Ultrasonic Cleaning |
N/A |
N/A |
||
|
7 |
Inspection & packing |
N/A |
N/A |
EUS FNB Needle Manufacturing Process
| process |
|
Description
|
Role
|
Advantages
|
|
Material Selection |
 |
Select medical-grade materials meeting industry standards. Inspect material for uniformity and quality. |
Ensures durability, flexibility, and sharpness for accurate tissue acquisition. |
Delivers long-lasting, reliable performance, ensuring precision during clinical procedures. |
|
CNC Turning - Sliding Headstock Lathe |
 |
Draw the material into a slender needle body with a uniform diameter. |
Shape the needle to achieve precise dimensions for the shaft and tip. |
Guarantees high precision with tolerances of ±0.005 mm and repeatability of ±0.002 mm, ensuring consistency. |
|
Grinding - Grinding Machine |
 |
Shape the needle and polish to minimize surface roughness. |
Enhances the needle's geometry and sharpness for optimal performance. |
Achieves a sharp, smooth finish, ensuring ease of insertion and optimal performance. |
|
Laser Etching - 5-Axis Laser Cutting Machine |
 |
Apply imaging markers (e.g., platinum or gold coatings) to specific areas. |
Provides clear, permanent markings such as lot numbers and measurement scales. |
Ensures precision with tolerances of ±0.01 mm to ±0.001 mm, resulting in accurate, permanent, and readable markings. |
|
Electrolytic Polishing |
 |
Smooth the surface by electrolytic polishing. |
Improves surface smoothness, reduces friction, and enhances corrosion resistance. |
Enhances insertion ease and extends needle durability by providing a smooth, polished finish. |
|
Ultrasonic Cleaning |
 |
Clean the needle using ultrasonic cleaning to remove debris. |
Cleans the needle by eliminating impurities that could compromise patient safety. |
Ensures a contaminant-free needle, maintaining safety and accuracy during procedures. |
|
Inspection & Packing |
 |
Inspect and package the needles, ensuring diameter, length, and shape meet specifications. |
Verifies sharpness, flexibility, and dimensional accuracy before packing. |
Guarantees product quality, with accurate specifications and reliable packaging for safe and secure delivery. |
why Choose Manners?
Manners Technology, based in Shenzhen, China, specializes in the research, development, and manufacturing of EUS FNB/FNA biopsy needles. Our products are crafted from medical-grade stainless steel and nitinol, undergoing precision machining and surface treatment to deliver excellent puncture performance and flexibility, all by international standards. With years of OEM experience, we offer customized solutions, allowing for flexible adjustments in needle tip design, imaging markers, needle diameter specifications, and material selection to meet clinical requirements. For pricing information or to learn more about our products and services, please do not hesitate to contact us.
Superior Quality
Crafted with advanced techniques such as CNC machining, laser engraving, and electropolishing, our needles are comparable to leading brands like Boston Scientific.
Precision Manufacturing
With the Citizen L12-1M7 lathe, we achieve accuracy within ± 0.01 mm.
Rigorous Certifications
Our factory is certified under ISO 9001:2015 and ISO 13485, ensuring compliance with global quality standards.
Customized Solutions & Reliable Delivery
We offer customizable options for needle design, length, diameter, and packaging, partnered with trusted logistics providers.
