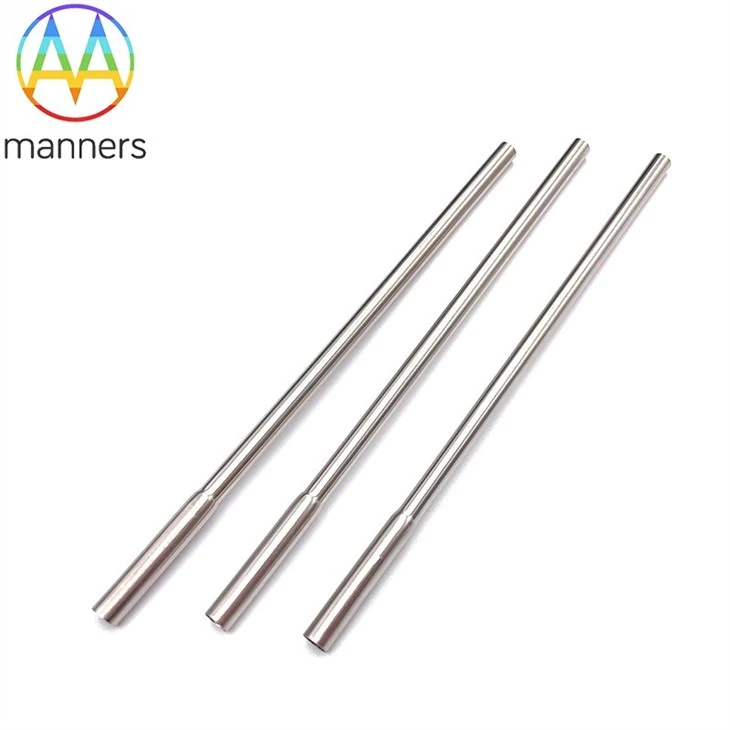

Stainless Steel Swaged Tube

Product Specification Product Show (2) Spread out marking (take circular reducer pipe as an example) There are radiation method, sample method and triangle method for the expansion of circular reducer tube. A. Radiation method: it is suitable for the situation where the diameter of the reducing...

Send Inquiry

Description

Product Specification

Product name	Stainless Steel Swaged Tube
material	Aluminum Alloy, Brass, Stainless steel, Titanium, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Tube Shape	Custom round, oval, square, rectangular
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

Product Show

(2) Spread out marking (take circular reducer pipe as an example)

There are radiation method, sample method and triangle method for the expansion of circular reducer tube.

A. Radiation method: it is suitable for the situation where the diameter of the reducing pipe is relatively small, the diameter changes greatly, the height is low, and the intersection point is easily obtained after the plane line is extended. If there is no possible difference between the two groups.

B. Sample method: used for the development of circular diameter reducer pipe, widely used in engineering, simple operation. Methods: The circumference of the upper and lower diameters was calculated, the upper and lower ends of the model ladder were taken as the upper and lower ends of the model ladder, and the height of the ladder was taken as the inclined length of the reducer pipe. Then, using these waist ladders as a template, arrange 12 pieces on a plate. Stainless steel ruler is needed to check whether the circumference and calculation of the round tube are the same. If there is any difference, it needs to be adjusted to modify the correct expansion diagram of the round tube to obtain the reduced diameter tube.

C, triangle method: suitable for all reducer, mainly for the expansion of eccentric reducer. According to the known size, the plane projection map of the circular eccentric reducer is drawn, the 12 small trapezoidal diagonals are divided into 24 small triangles, then the actual length of each line segment is calculated, and the expansion map is drawn successively.
