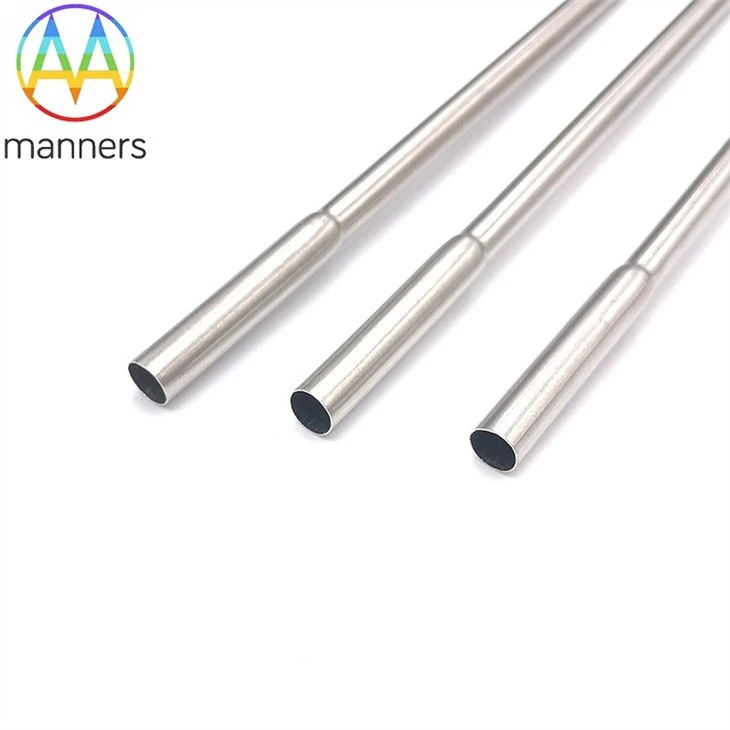

Swaging Reduction Capillary Tube

Product Specification Product Show Reducing pipe: the part used for reducing pipe diameter, its specifications are provided according to customer's requirements. The lofting problem of tube reducer elbow can only be approximate lofting, because the solid surface is undeployable surface, so...

Send Inquiry

Description

Product Specification

Product name	Swaging Reduction Capillary Tube
material	Aluminum Alloy, Brass, Stainless steel, Titanium, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Tube Shape	Custom round, oval, square, rectangular
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

Product Show

Reducing pipe: the part used for reducing pipe diameter, its specifications are provided according to customer's requirements.

The lofting problem of tube reducer elbow can only be approximate lofting, because the solid surface is undeployable surface, so it can only be approximately expanded by triangle method, or approximately expanded by rhinoceros software. First draw the entity with rhinoceros software, and then use the flattening command under the curved menu to approximately expand. See examples.
