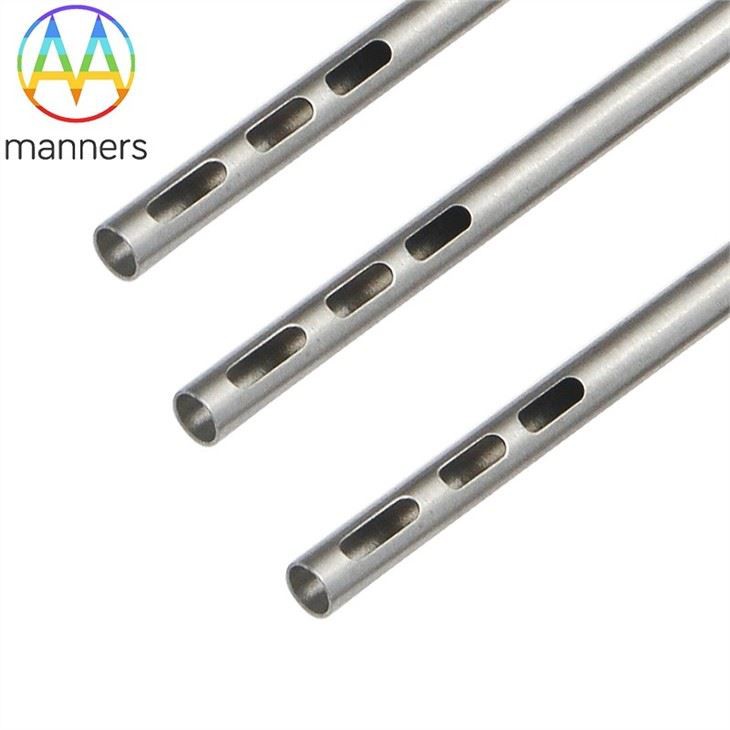

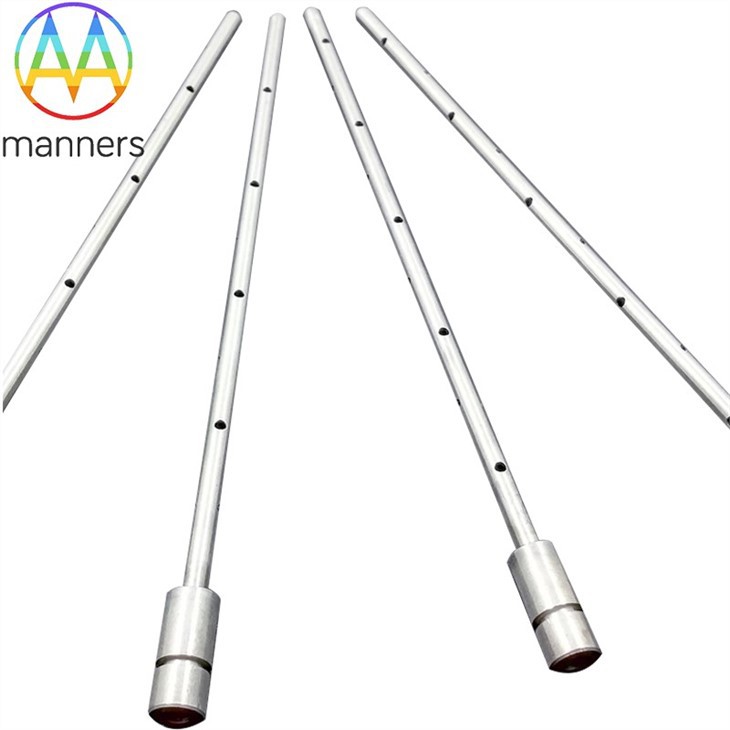

Thin Wall Side Hole Tube

Product Specification Product Show 1. The actual characteristics of stainless steel cutting 1.1 Has a strong work hardening trend, easy to wear tools Most stainless steel materials (martensitic stainless steel exception) has a strong hardening trend, at the same time, because the hardening layer...

Send Inquiry

Description

Product Specification

Product name	Thin wall side hole tube
material	Aluminum Alloy, Brass, stainless steel, titanium, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Tube Shape	Custom round, oval, square, rectangular
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

Product Show

1. The actual characteristics of stainless steel cutting

1.1 Has a strong work hardening trend, easy to wear tools

Most stainless steel materials (martensitic stainless steel exception) has a strong hardening trend, at the same time, because the hardening layer has a high hardness (usually higher than the original hardness about 2 times, surface hardness HV can achieve

2) 400-570 kg/mm. Different cutting conditions and stainless steel workpiece materials can make the work hardening depth from tens of μm to hundreds of μm(usually 100μm-200μm).

1.2 Chip is not easy to break or curl

Chips are not easy to curl and break during cutting. Especially boring, drilling, cutting and other processes in the cutting process, chip removal is difficult, chip is easy to scratch the processed surface. Chip breaking and chip removal are the key issues to be considered when cutting stainless steel on CNC machine tools.

1.3 Chip has strong adhesion and is easy to cause knife tumor

Stainless steel materials have high toughness, especially for other metal materials have a strong affinity, the processing process is very easy to cause knife tumor.

TUBULAR COMPONENTS
