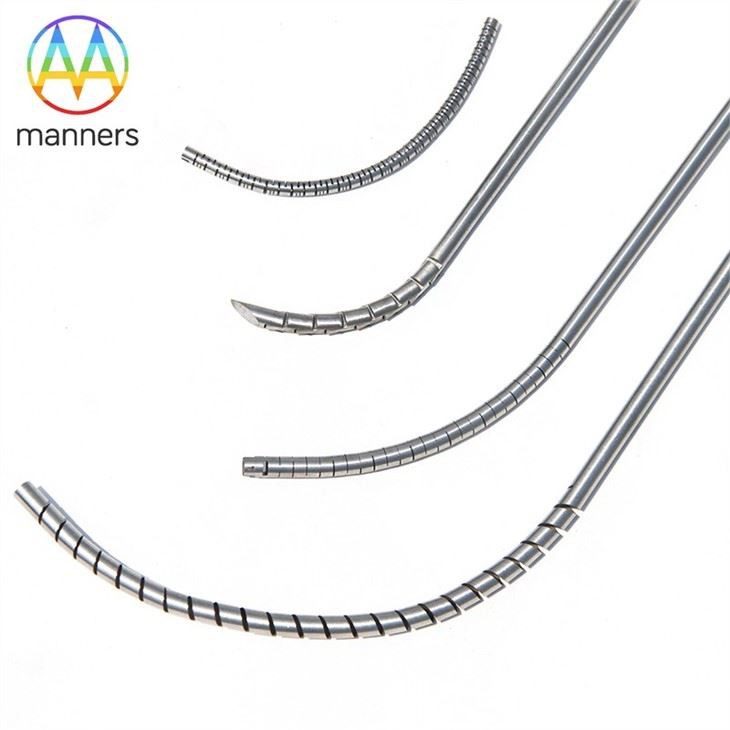

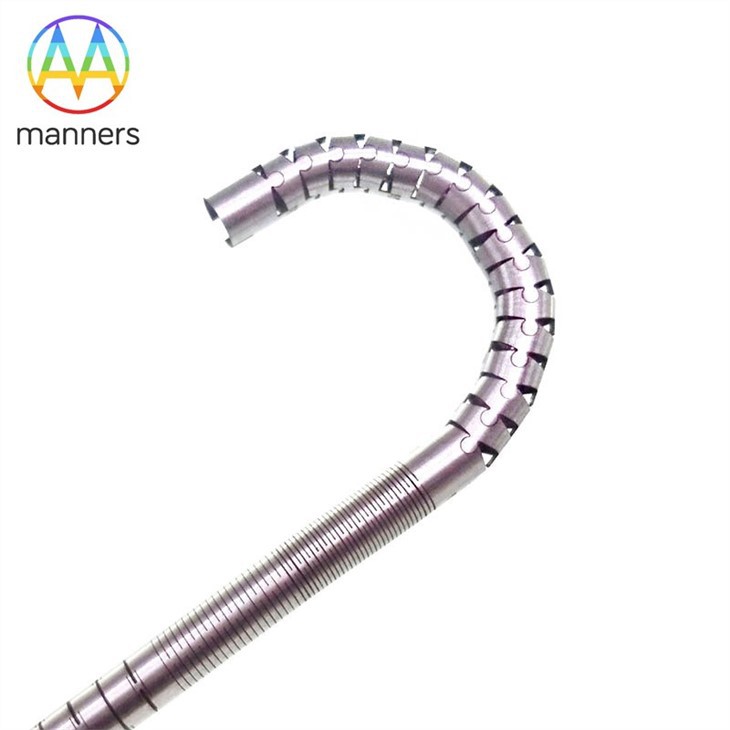

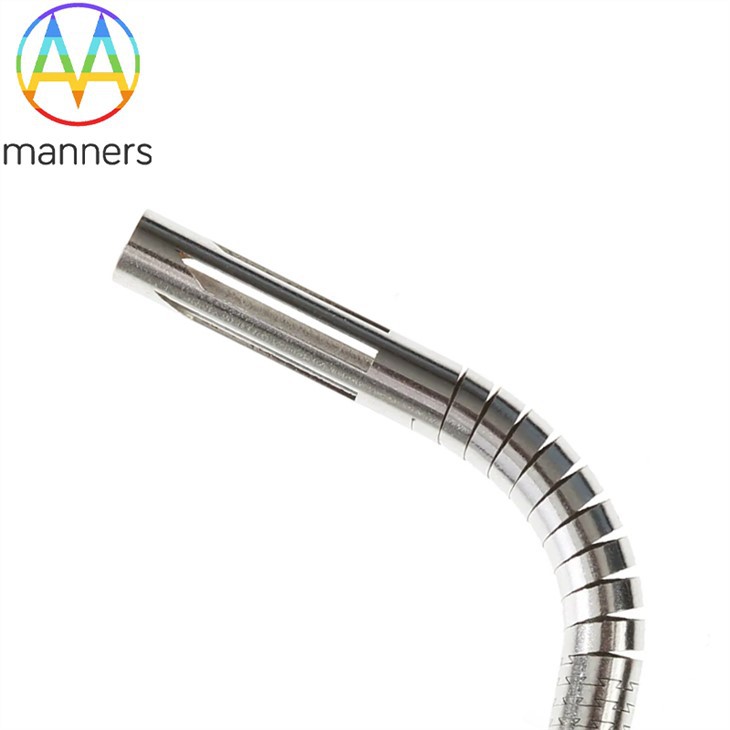

Flexible Hypotube
Product specification Product show Material – Laser cutting is great for many of the materials commonly used in medical applications, including stainless steels (300 and 400 series, 17-4, 17-7), MP35N (cobalt-chrome steel alloy), and Nitinol. Other materials, such as titanium for implants and...
Description
Product specification
Product name | Flexible Hypotube |
material | Stainless steel, etc. |
Surface Treatment | Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving |
Machining Option | Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc. |
Custom feature | According to your 2D/3D Drawing or sample provided |
Package | Standard carton or according to customer's requirement |
Certification | ISO9001:2015, SGS |
Product show
Material – Laser cutting is great for many of the materials commonly used in medical applications, including stainless steels (300 and 400 series, 17-4, 17-7), MP35N (cobalt-chrome steel alloy), and Nitinol. Other materials, such as titanium for implants and platinum iridium (Pt-Ir) commonly used for electrodes, can also be laser-cut, but may require little more setup time.
Thickness– A 100W laser can comfortably cut a range of stainless steels up to 0.03-inch thick by altering the pulse width and frequency. For example, the thinner the material, the shorter pulse duration and higher pulse frequency needed to make the cut. A pulse width of 50 microseconds and frequency of 3000 Hz is a good starting point for 0.008-inch thick material, for example. Thicker materials may be cut with higher laser power.
Our factory
Geometry – Laser cutting offers great flexibility and works well with complex geometries. Unique cut features like off-axis cutting, enables product design for functionality without compromising manufacturability, but that’s not to say that laser cutting capabilities are not limitless. For example, some arthroscopic surgery shaver blades require a cut angle of up to 70 degrees to the distal part of the tube. This is not possible using the laser due to the large thickness increase caused by the angle coupled with the focus spot becoming an ellipse shape on the angled surface, significantly reducing the concentration of laser power and disrupting the cutting process.
Speed – Laser cutting is an efficient process as the material being removed is minimal, and typical cut widths are less than 0.0015” for 0.015” thick material. Lasers cut parts one at time as opposed to wire EDM which stack cuts parts, but the overall cycle is still competitive, though of course part load/unload occurs more frequently. Laser cutting really excels compared to sinker EDM when cutting single sided tube features, in this instance laser cutting can be 2-3x faster.
Our Certification
Flexible Hypotube
