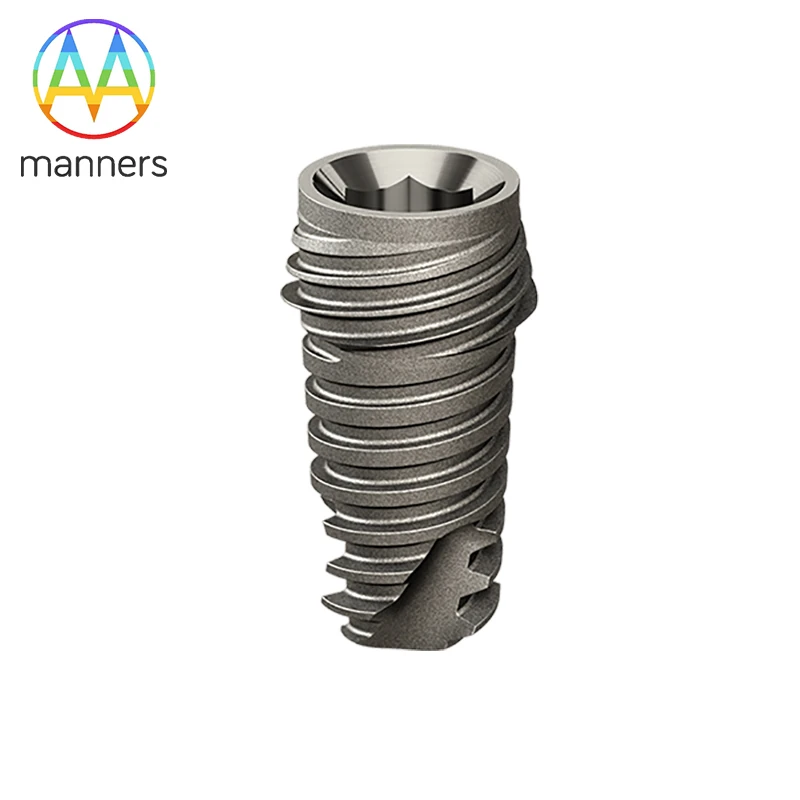

Metal Pure Titanium Dental Implant

Metal Pure Titanium Dental Implant



Production introduction

Metal pure titanium dental implant is a medical device used to replace missing teeth, serving as an artificial root. Typically crafted from highly pure titanium metal, a material widely employed in the field of oral medicine, the design of pure titanium dental implants aims to seamlessly integrate with a patient's natural teeth and jawbone, providing reliable support while achieving similarity in both appearance and functionality to natural teeth.

1. Lightweight: Pure titanium is a lightweight metal, making pure titanium dental implants more compact compared to other materials. This not only reduces the oral burden on patients but also contributes to enhanced surgical comfort and smooth recovery.

2. High Purity: The manufacturing process of pure titanium ensures a high level of metal purity, free from harmful impurities. This high purity helps minimize the risk of allergic reactions and rejection in patients.

3. Corrosion Resistance: Pure titanium exhibits excellent corrosion resistance, particularly in the moist and acidic environment of the oral cavity. This ensures the long-term stability and reliability of dental implants within the oral environment.

4. Biocompatibility: Pure titanium is highly compatible with human tissues, showing minimal tendencies for rejection reactions. This facilitates easier acceptance and adaptation of the implants by patients, thereby improving the overall success rate of the procedure.



Product Specification

Product Name	Metal Pure Titanium Dental Implant
Material	Gold alloy, Titanium alloy, Ni-Cr alloy, Titanium
Type	Conical shape
Treatment	SLAcitive
Hex Size	Small Implant Hex Size: 2.1 mm Regular Implant Hex Size: 2.5 mm
Abutment Contact Surface Diametermeters	Small Implant: 2.8 mm Regular Implant: 3.35 mm
Availiable Dia	Ø3.5 / Ø4.1 / Ø4.7 / Ø5.3 mm
Available Lengths	7 / 9 / 11 / 13 / 15 mm



Diverse Sizes and Hex Sizes

Small Implant Hex Size: 2.1 mm

Regular Implant Hex Size: 2.5 mm

Diameters	Lengths	Lengths	Lengths	Lengths	Lengths
SI Ø3.5 mm (Hex: 2.1 mm)		9mm	11mm	13mm
RI Ø4.1 mm (Hex: 2.5 mm)	7mm	9mm	11mm	13mm	15mm
RI Ø4.7 mm (Hex: 2.5 mm)	7mm	9mm	11mm	13mm
RI Ø5.3 mm (Hex: 2.5 mm)	7mm	9mm	11mm	13mm

Our product line encompasses a diverse range of materials, including gold alloy, titanium alloy, nickel alloy, nickel-titanium alloy, and various types such as cylindrical threaded, stepped cylindrical threaded, conical threaded, and blade-shaped implants. Proudly, we offer customization options for materials, dimensions, sizes, and shapes tailored to individual patient needs.



Product application

1. Single-Tooth Restoration: Pure titanium dental implants offer an exceptional solution for replacing a single missing tooth. The material's advantages ensure seamless integration with natural tooth roots, achieving both a natural appearance and functionality.

2. Multiple Tooth Restoration: In cases of multiple missing teeth, pure titanium dental implants provide a customizable solution for full mouth reconstruction, optimizing aesthetics and function.

3. Full Arch Restoration: For patients with the loss of all teeth, pure titanium dental implants offer support and stimulation to the jawbone, providing a robust foundation for fixed or removable full-mouth restoration solutions.

4. Immediate Loading Protocols: Due to its outstanding material strength and resilience, pure titanium dental implants support immediate loading protocols, reducing treatment duration and enhancing the patient's surgical experience.

5. Implant-Supported Dentures: Pure titanium dental implants serve as a reliable support system for full or partial dentures, ensuring stability and natural feeling during chewing and speech.



Production details

Selective Laser Ablation (SLA) and SLAcitive processing

In addition to our customization services, we have integrated advanced surface treatment technologies, including Selective Laser Ablation (SLA) and SLAcitive processing. SLA surface treatment employs laser technology for selective removal, precisely adjusting the surface characteristics of dental implants. This method enhances adhesion, glossiness, and other surface properties, providing a reliable means to optimize clinical outcomes.



The innovative SLAcitive processing further improves biocompatibility and osseointegration by introducing active surface technology. Enhancing the implant's bonding strength with surrounding tissues, this treatment method crucially supports the long-term stability and success rate of dental implants.



Whether through the diversity of material choices, the flexibility of customization services, or the introduction of advanced surface treatment technologies, our goal is to provide dental professionals with the best tools available. Through SLA surface treatment and SLAcitive processing, we ensure that each dental implant is meticulously designed to achieve exceptional clinical results, while guaranteeing patients experience optimal oral health and aesthetic outcomes.



Product qualification

Five-Axis CNC Machining in Dental Implant Production

Five-axis CNC machining plays a pivotal role in the production of dental implants. This advanced CNC machine allows precise control over five coordinate axes, enabling the accurate processing of intricate three-dimensional shapes. Here are the general steps involved in the production of dental implants using a five-axis CNC machine:



1. Digital Design: Initially, precise three-dimensional data of the patient's jawbone is obtained through oral scans or dental impressions. This data is then input into Computer-Aided Design (CAD) software for the digital design of the dental implant.

2. CAD/CAM Integration: The digital model generated by CAD software is integrated with Computer-Aided Manufacturing (CAM) software. CAM software translates the design into machine language, allowing the five-axis CNC machine to comprehend and execute the corresponding machining paths.

3. Material Preparation: Based on the design, an appropriate implant material is chosen, typically a biocompatible metal such as titanium alloy. The material is loaded onto the machine, ready for processing.

4. Five-Axis CNC Machining: The five-axis CNC machine, guided by the design and instructions from CAM software, initiates precise cutting and sculpting across five coordinate axes. This includes machining the external shape and internal structure of the implant to ensure the desired quality and adaptability.

5. Surface Treatment: Upon completion of machining, the implant may undergo surface treatments such as polishing or coating to enhance its biocompatibility and corrosion resistance.

6. Quality Inspection and Adjustment: The finished implant undergoes rigorous quality inspection to ensure compliance with design specifications and dental standards. If necessary, fine-tuning or adjustments may be performed.



Through the precise control offered by the five-axis CNC machine, the production of dental implants achieves a high level of customization, ensuring a perfect match with the patient's oral anatomy and functional requirements. This advanced manufacturing technology contributes to the enhanced quality, adaptability, and durability of dental implants.





Frequently Asked Questions

1. What is a pure titanium dental implant?

A pure titanium dental implant is an artificial tooth root used to replace missing teeth, typically crafted from highly pure titanium metal known for its biocompatibility, lightweight, and corrosion resistance.

2. Why choose pure titanium material?

Pure titanium possesses excellent biocompatibility, is lightweight yet strong, making it the preferred material for dental implants in oral medicine.

3. What are the advantages of pure titanium dental implants?

The advantages include high biocompatibility, sufficient strength with lightweight properties, and strong corrosion resistance, allowing seamless integration with natural teeth.
