Aluminum CNC Lathe Turning Parts

Product specification Product show Roughness of turning parts surface definition: roughness of turning parts surface is the smoothness of parts, the smoothness of general turning parts is usually 6.3um, the highest is 1.6um, more than that, ordinary turning has been powerless. Surface roughness...

Send Inquiry

Description

Product specification

Product name	Aluminum CNC Lathe Turning Parts
material	Aluminum 6061, Aluminum 6063, Aluminum 7075, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

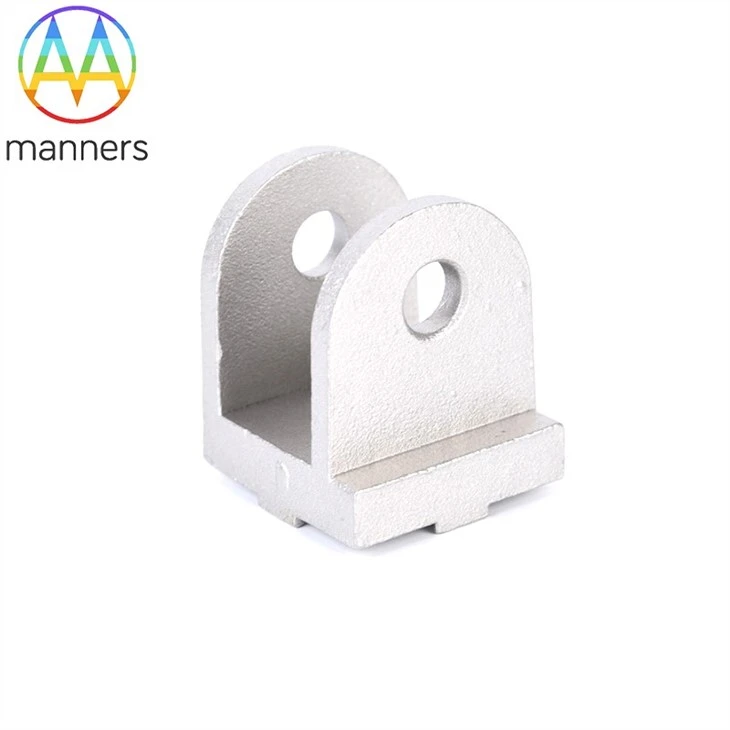

Product show

Roughness of turning parts surface definition: roughness of turning parts surface is the smoothness of parts, the smoothness of general turning parts is usually 6.3um, the highest is 1.6um, more than that, ordinary turning has been powerless.

Surface roughness of turning parts refers to the small spacing and the unflatness of small peaks and valleys on turning surfaces. The distance (wave distance) between two wave peaks or two wave troughs is very small (less than 1mm), which belongs to the microscopic geometry error. The smaller the surface roughness, the smoother the surface.

The working principle of

The workpiece rotates and the turning tool moves in a straight line or curve in the plane. Turning is generally carried out on a lathe to process the internal and external cylindrical surface, end surface, conical surface, forming surface and thread of the workpiece.

When turning the inner and outer cylinder, the turning tool moves in the direction parallel to the axis of rotation of the workpiece. When turning the end face or cutting the workpiece, the turning tool moves horizontally in the direction perpendicular to the axis of rotation of the workpiece. If the trajectory of the turning tool and the workpiece rotation axis of an oblique Angle, can be processed into a conical surface. The turning surface of the rotary body can be shaped by tool method or tool tip track method.

215-2

308-1

207-1 204-1

297-1 245-1 72-1

Our factory

Production equipment

Equipment List	Brand	Type	Working Track	Tolerance (mm)	Quantity (Set)
CNC Milling Machine	FANUC	FANUC Machining Center	500400320	0.01	15
Brother	Brother Tapping Center	500400300	0.02	10	1
HATEN	Drilling & tapping machine		0.02	5	2
LK	Machining Center		0.02	7	2
Harvest Star	CNC Machine	depend on different models	0.015	10	1
Mazak	Vertical Machining Center	910550450+30-(-120)0-360	0.005	1	2
SYNTEC	Vertical Machining Center	530400300	0.01-0.005	1	2
Tmt	CNC Machine	depend on different models	0.01	8	2
Sihai	Machining Center		0.02	2	1
Kangcheng	Machining Center		0.02	2	1
Taikan	Machining Center	depend on different models	0.01	110	2
Renishaw	Probe		0.01	80	1
CNC Turning Lathe	Schutte	CNC Lathe	depend on different models	0.005	2
TSUGAMI	CNC High Precision Lathe	depend on different models	depend on different models	2	1
HELONG	CNC Lathe	depend on different models	0.01	20	2
Slotting Machine	YUYI	CNC Slotting Machine		0.01	1
