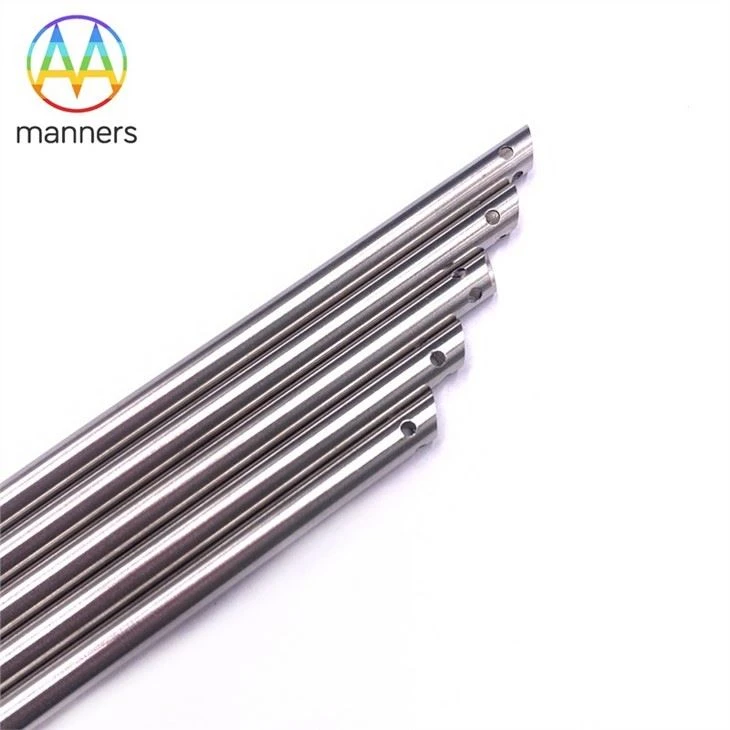

Laser Drilled Side Hole Stainless Steel Tube

Laser Drilled Side Hole Stainless Steel Tube

Product Specification Product Show 1, tool material selection Due to the processing of stainless steel parts when the cutting force, high cutting temperature, tool materials should try to choose high strength, good thermal conductivity YW or YG cemented carbide. YT14 and YT15 carbide blades can...

Send Inquiry

Description

Product Specification

Product name	Laser Drilled Side Hole Stainless Steel Tube
material	Aluminum Alloy, Brass, stainless steel, titanium, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Tube Shape	Custom round, oval, square, rectangular
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

Product Show

1, tool material selection

Due to the processing of stainless steel parts when the cutting force, high cutting temperature, tool materials should try to choose high strength, good thermal conductivity YW or YG cemented carbide. YT14 and YT15 carbide blades can also be used for finishing. Batch processing the material parts, ceramic cutting tools can be used, because this kind of material is the main characteristic of the great toughness, work hardening is serious, the chip of cutting the material in the form of unit chip, will make the tool produces vibration, easy to cause the blade to produce micro collapse phenomenon, so choosing ceramic tool cutting such material parts should consider above all is the micro toughness.

At present, Sialon is a good choice, especially α/βSialon material, because of its excellent resistance to high temperature deformation and diffusion wear performance, and successfully applied to cutting nickel base alloy, its life is far more than al2o3-based ceramics. In addition, SiC whisker reinforced ceramics are also an effective tool material for cutting stainless steel or nickel-based alloys.

For the processing of such material quenching parts, you can use CBN (cubic boron nitride) blade, CBN hardness is second only to diamond, the hardness can reach 7000 ~ 8000HV, so the wear resistance is very high, compared with diamond, CBN outstanding advantage is much higher than diamond heat resistance, up to 1200℃, can withstand high cutting temperature. In addition, its chemical inertia is very large, and iron group metal in 1200 ~ 1300℃ also does not have chemical action, so it is very suitable for processing stainless steel materials. Its tool life is carbide or ceramic tool dozens of times.
