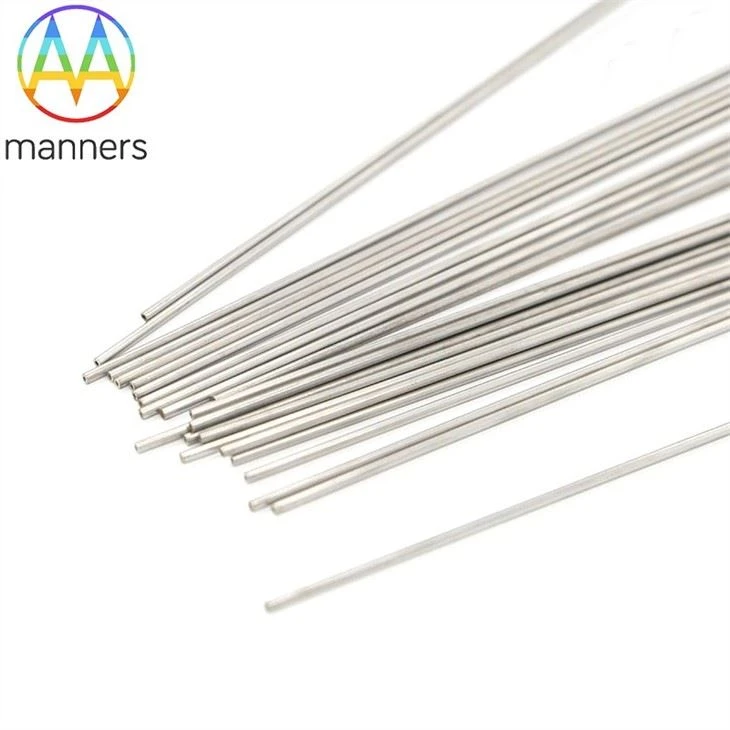

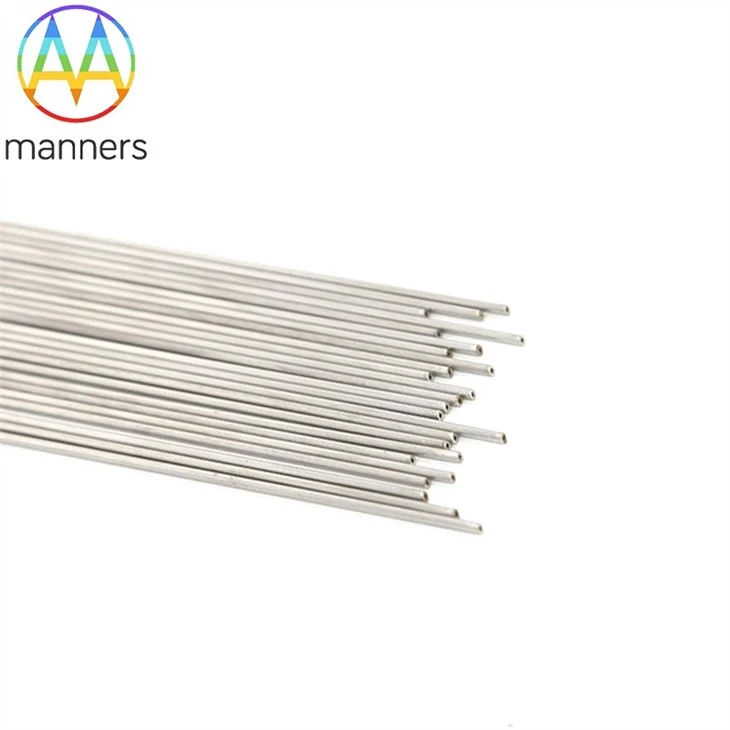

304 Stainless Steel Capillary Tube With Small Diameter
Product Specification Product Show Three, stainless steel capillary processing matters needing attention First is to focus on the processing performance of stainless steel, stainless steel cutting large plasticity, high toughness, cutting energy consumption, high cutting temperature, the lower...
Description
Product Specification
Product name | 304 Stainless steel capillary tube with small diameter |
material | Stainless steel 304, Stainless steel 316, etc. |
Surface Treatment | Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving |
Machining Option | Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc. |
Tube Shape | Custom round, oval, square, rectangular |
Custom feature | According to your 2D/3D Drawing or sample provided |
Package | Standard carton or according to customer's requirement |
Certification | ISO9001:2015, SGS |
Product Show
Three, stainless steel capillary processing matters needing attention
First is to focus on the processing performance of stainless steel, stainless steel cutting large plasticity, high toughness, cutting energy consumption, high cutting temperature, the lower thermal conductivity of stainless steel, heat not handle very easy lead to cutting tool temperature, stainless steel bonded coagulation welding sex is strong, easy to generate the devolop when cutting lump, stainless steel work hardening tendency is strong, easy to generate the cutting surface hardening layer, Stainless steel is not easy to chip, cutting will be blocked, resulting in stainless steel processing surface finish is affected.
Second is the stainless steel cutting tool, the front Angle is not easy to be too large, usually take 12-30 degrees, the front grinding crescent chip guide groove can improve the cutting conditions, after the Angle, is the hard alloy turning tool, after the Angle needs to take 6-10 degrees, the high-speed steel turning tool, after the Angle needs to be 8-12 degrees, the main Angle, the main Angle is 60-75 degrees, The auxiliary deflection Angle needs to be 8-20 °, should be greater than zero in the rough car, should be less than zero in the fine car, tip radius, usually 0.2-0.8mm.
The third is the need to pay attention to the cooling lubrication of stainless steel cutting, to use the lubrication fluid with better cooling lubrication performance, so as to effectively improve work efficiency.
Our Factory
304 Stainless steel capillary tube with small diameter
