Copper Tube Bending

Product Specification Product Show Copper tube specifications and models are: 1, indoor machine size: 850×290×185mm. 850 * 265 * 210 mm. 850 * 290 * 185 mm. 790 * 265 * 200 mm. 790 * 265 * 210 mm. 2, inner thread copper pipe, external diameter φ 9.52mm, bottom wall thickness 0.27mm, tooth height...

Send Inquiry

Description

Product Specification

Product name	Copper Tube Bending
material	Stainless steel 304, Stainless steel 316, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Tube Shape	Custom round, oval, square, rectangular
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

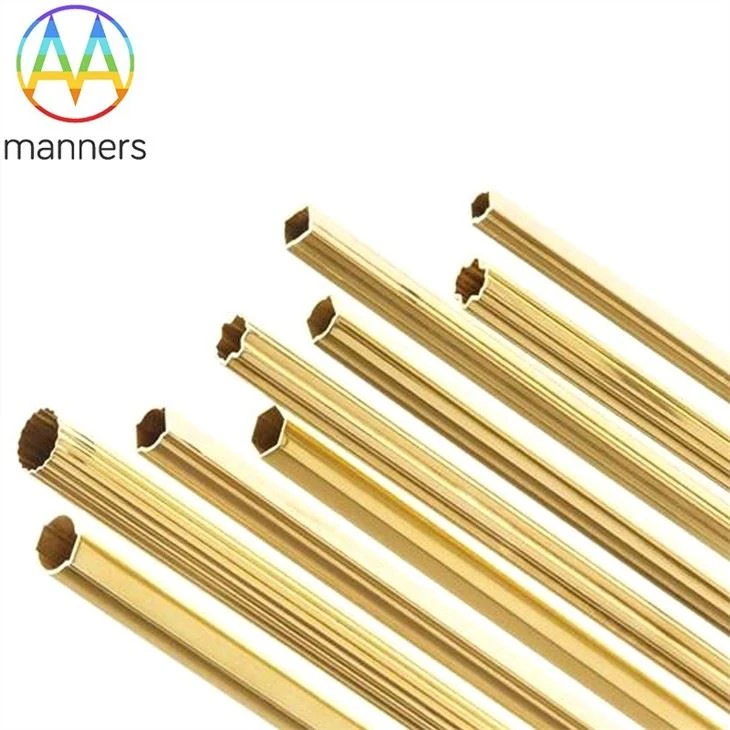

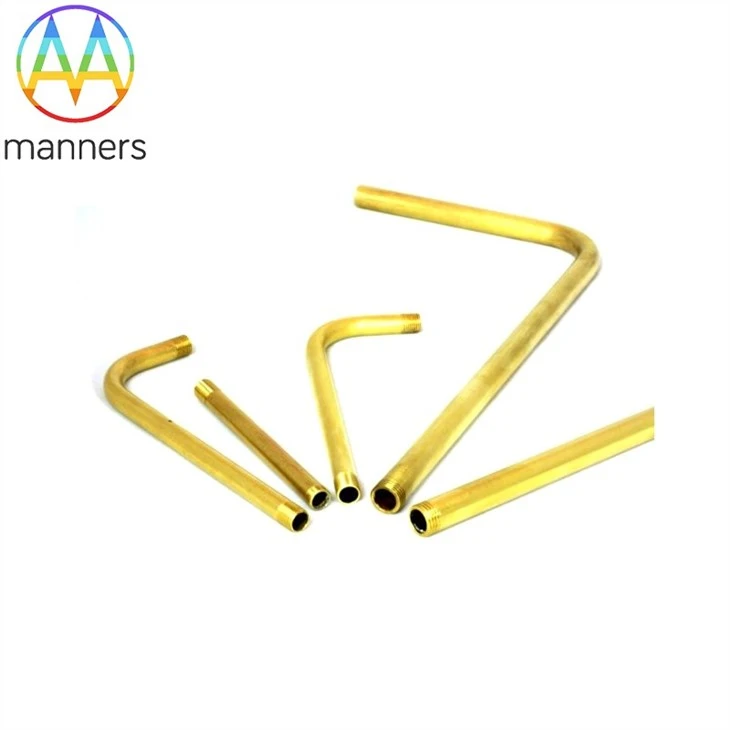

Product Show

Copper tube specifications and models are:

1, indoor machine size: 850×290×185mm. 850 * 265 * 210 mm. 850 * 290 * 185 mm. 790 * 265 * 200 mm. 790 * 265 * 210 mm.

2, inner thread copper pipe, external diameter φ 9.52mm, bottom wall thickness 0.27mm, tooth height 0.16mm, number of teeth 70, screw Angle 18 degrees, supply form (LWC), brand C1100T, copper pipe supply state OL, implementation of standard JISH3300.

The size of steel pipe is calibrated by nominal diameter. The so-called nominal diameter is a nominal diameter. This does not necessarily refer to the inside diameter, outside diameter or middle diameter, but to the nominal diameter of the fitting head or flange.

In other words, only related parts with the same nominal diameter can fit together. For steel pipe, its nominal diameter and, only with its outer diameter, or a function relationship. But for the standard steel pipe, its nominal diameter is generally close to its inner diameter.
