Ink Filling Needle

Product Specification Technical Specifications Product Show Filling the reservoir with ink may be achieved manually, via the use of an eyedropper or syringe needle, or via an internal filling mechanism which creates suction (for example, through a piston mechanism) or a vacuum to transfer ink...

Send Inquiry

Description

Product Specification

Product name	Ink Filling Needle
material	Stainless steel, etc.
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement

Technical Specifications

Syringe
Size: 10 ML/CC
Graduations: .2 ML/CC
Syringe Barrel Material: Polypropylene
Plunger Plug Material: Polyethylene
Luer Lock
Sterile

Dispensing Tip
18 Gauge
Length: 1 Inch
Cannula Outside Diameter: .050" (1.27mm)
Hub Material: Polypropylene
Cannula Material: Stainless Steel
Luer lock and Luer Slip Connection
Non-Sterile

Dispensing Cap
Material: Polypropaline
Luer Lock or Luer Slip
Non-Sterile

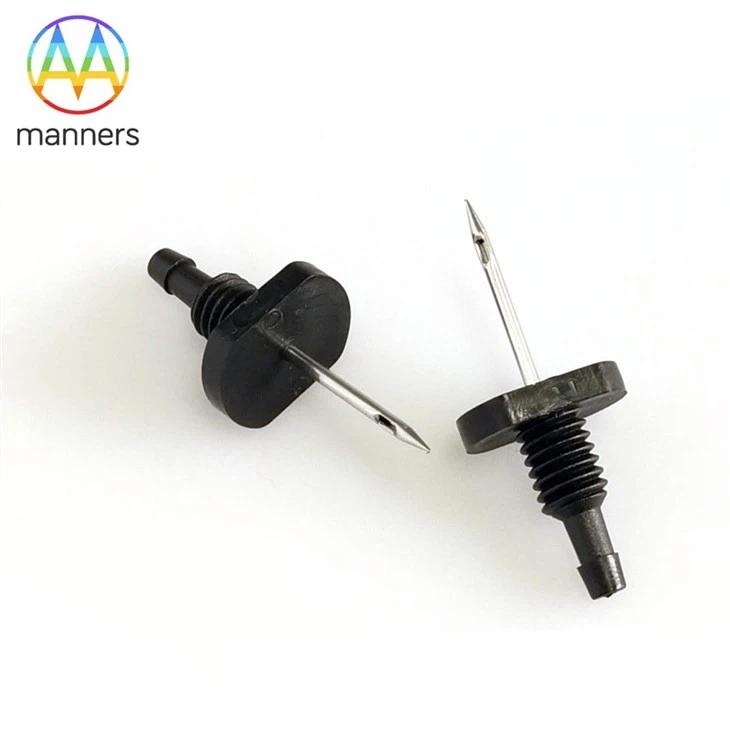

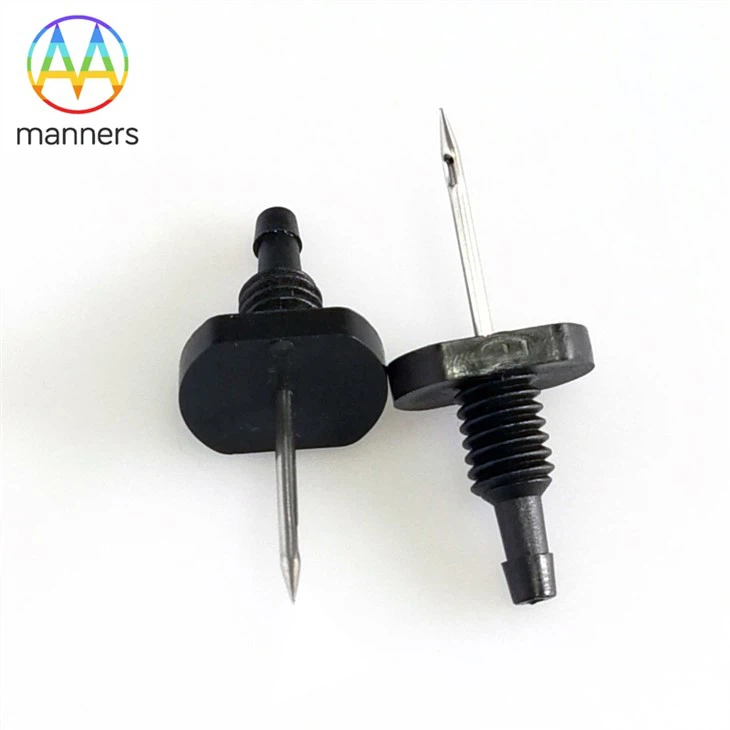

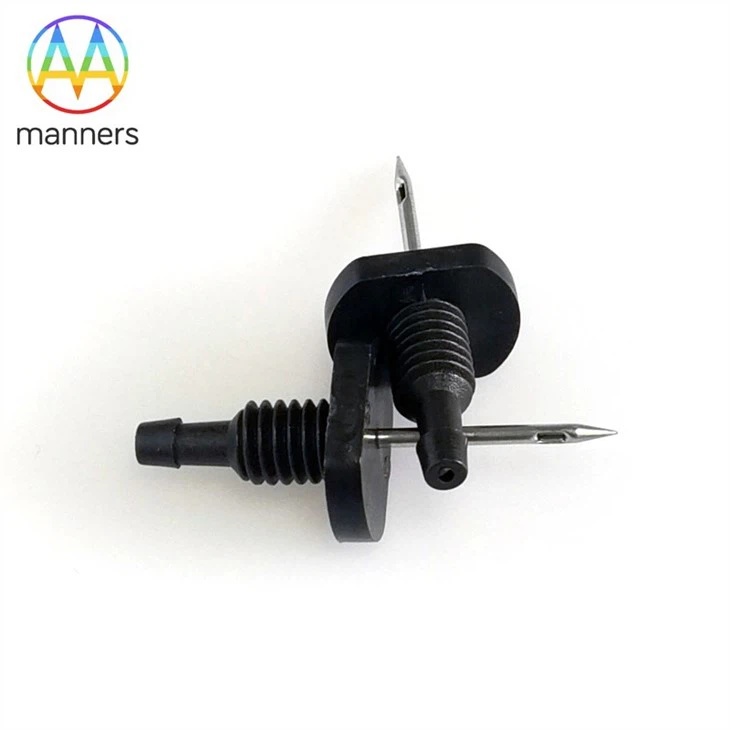

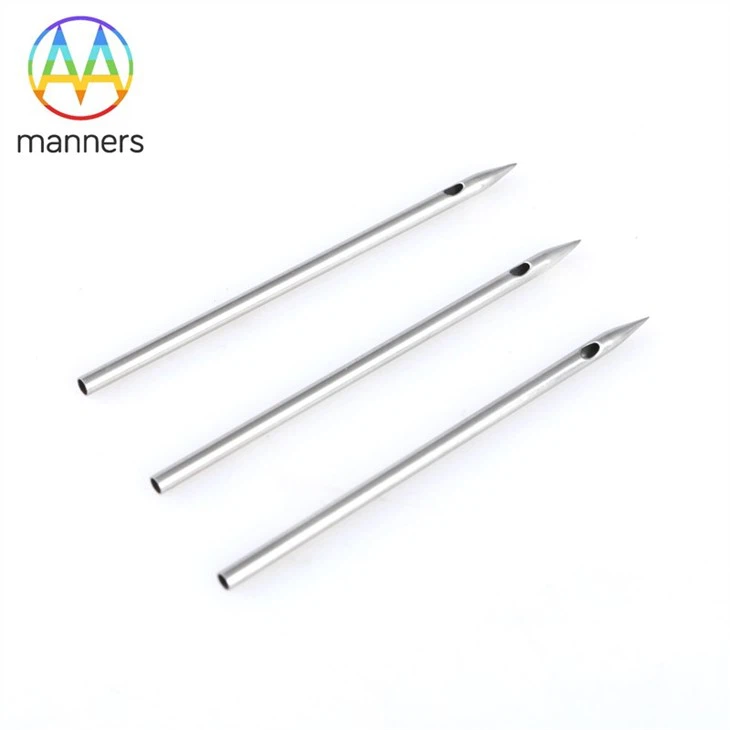

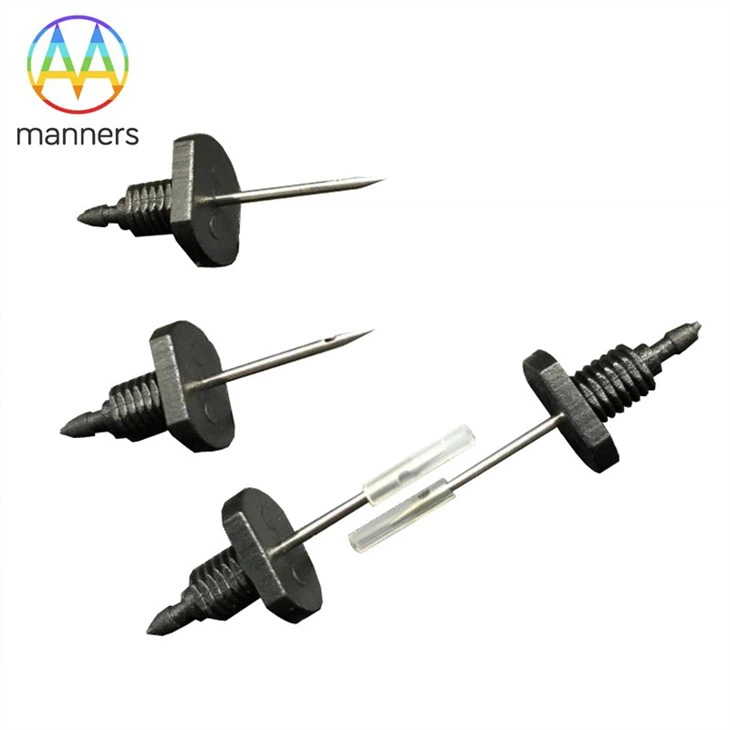

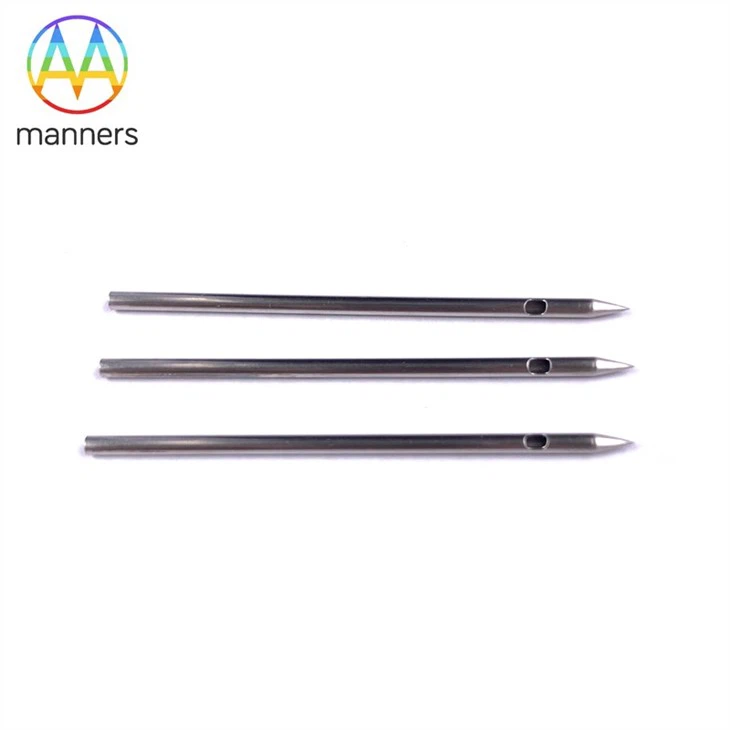

Product Show

Filling the reservoir with ink may be achieved manually, via the use of an eyedropper or syringe needle, or via an internal filling mechanism which creates suction (for example, through a piston mechanism) or a vacuum to transfer ink directly through the needle into the reservoir. Some needles employ removable reservoirs in the form of pre-filled ink cartridges.
