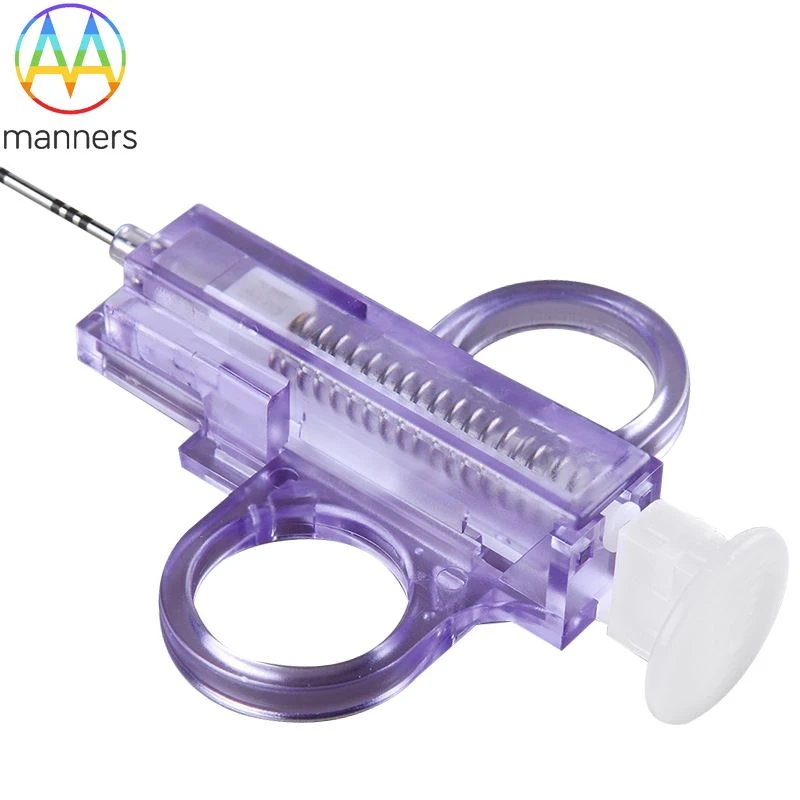

Semi-automatic guillotine needle for soft tissue biopsy
Dec 15, 2021
Features:
The distinguishing feature of the needle is that it can choose between 10mm or 20mm sample cavity.
The echo mark at the end of the cannula allows continuous monitoring of the needle position during the biopsy.
The centimeter depth mark on the cannula allows the user to control the depth reached.
The circular handle of the device can be easily grasped and held during the biopsy process.
The SpeedyBell DOPPIA CORSA needle can be equipped with a coaxial needle (introducer) on the device and is recommended for biopsy of multiple samples (eggs, breast biopsy).
Surgical technique:
1. Load the needle by pulling the rear knob. When the locking click of the spring is heard, the needle will be loaded. The first click means 10 mm
Sampling area, the second click indicates a sampling area of 20 mm.
2. Insert the loaded needle into the selected biopsy site, taking care not to press the rear knob.
3. When the needle is at the selected biopsy point, manually press the back knob until you hear the last click to collect
The sample to be analyzed.
4. Gently extract the needle from the tissue. To recycle materials, repeat the loading operation by pulling the rear knob until
Hear the locking click of the spring. Slowly push the knob until you find the sampling area, and then collect the sample for analysis.
