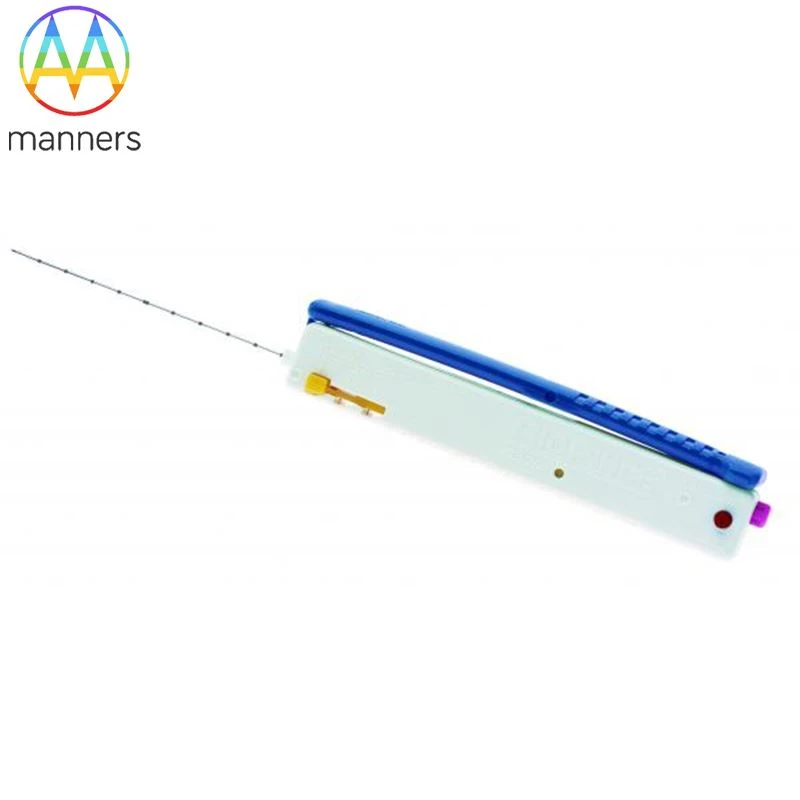

Instructions for single-use biopsy needles

1. Prepare the biopsy site and determine the target area.

2. Use standard techniques to advance the biopsy needle to the vicinity of the lesion. Fix the needle tube to the skin surface.

3. Remove the core of the biopsy needle and retain the needle tube.

4. Press the safety lock (A) on the side of the product. The product is indicated as a "safe" location.

5. The loading is completed by pulling up the loading (B) until you hear a "click", and then pressing the loading until it is fully closed until you hear a "click" for the second time. The yellow indicator in the “ready” hole (C) indicates that the product is ready. Note: The biopsy length of the BioPince biopsy needle is 13, 23 and 33mm for flexible clinical choice. When the biopsy needle is assembled and supplied, it is fixed at a position of 33mm. If you need to adjust the length of the biopsy, you need to start the device first. To select the required biopsy length, push the "knobs" on both sides of the biopsy length adjustment button (D) to the appropriate position. The 13mm biopsy length in the adjustment knob can take out 9mm length samples, the 23mm biopsy length can take out 19mm length samples, and the 33mm biopsy length can take out 29mm length samples.

6. Push the needle core to the vicinity of the lesion and release the safety lock (A). The product is ready to "inspire".

7. Firmly press the trigger button (E) located at the proximal end of the product.

8. Remove the product from the patient. Lift the opening button (B) and push it down, and the product will automatically launch a sample. The product can be sampled again at this time.
