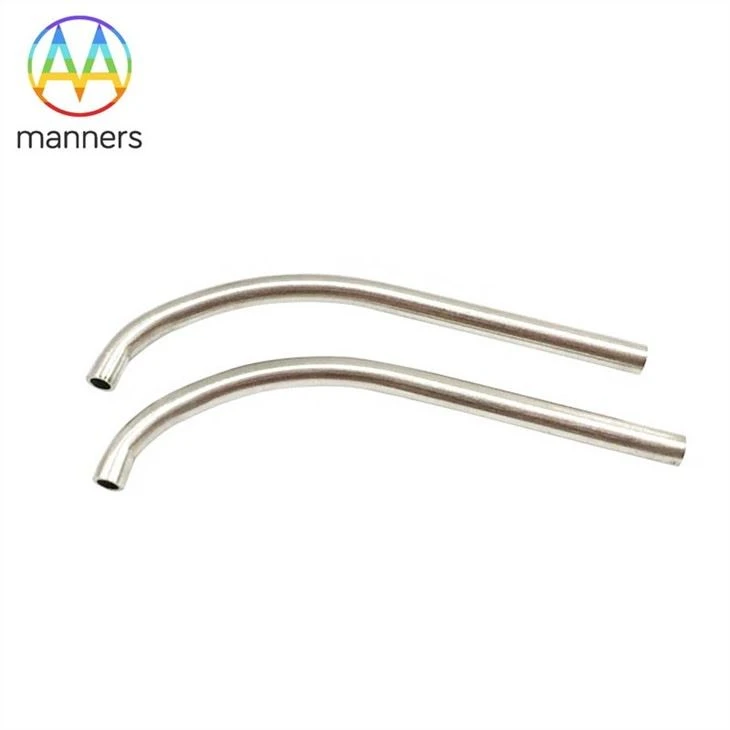

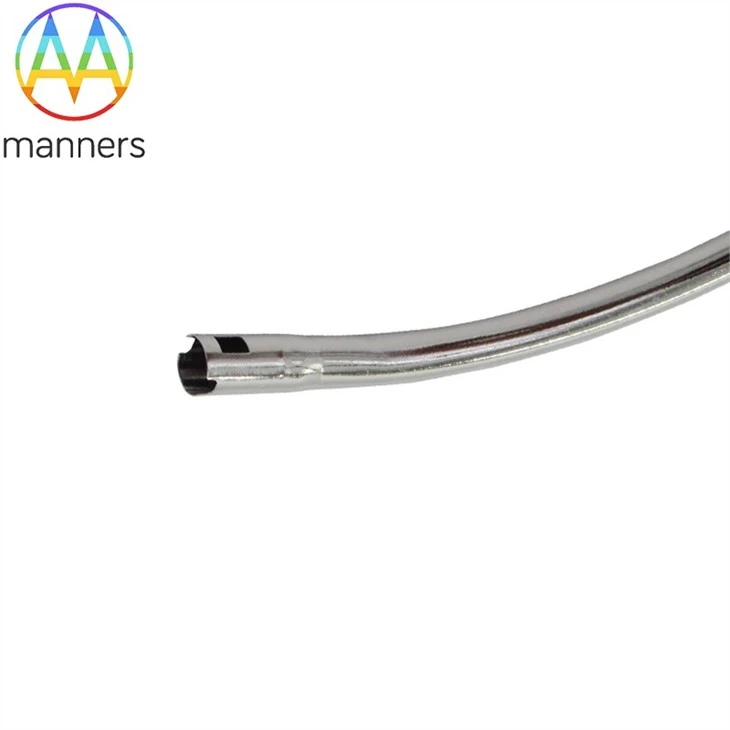

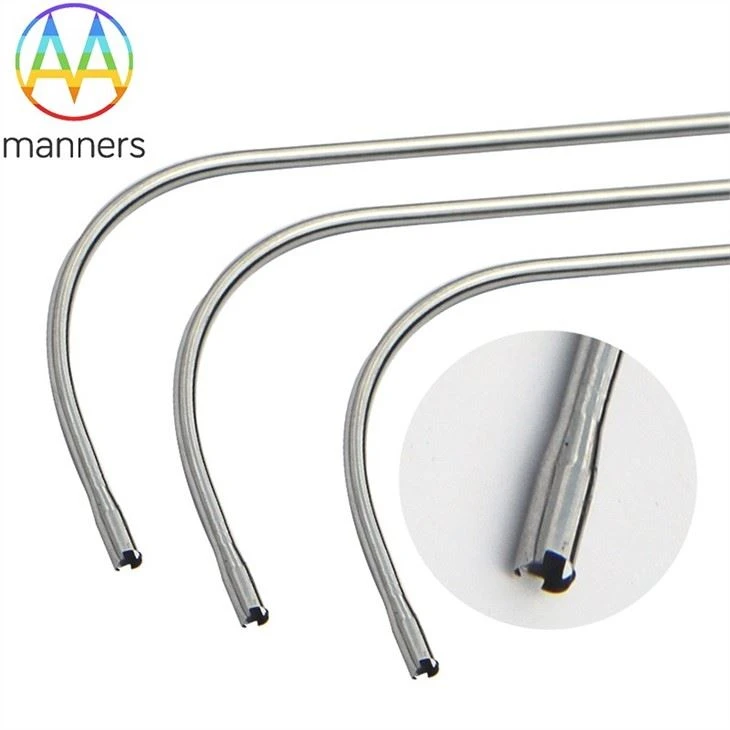

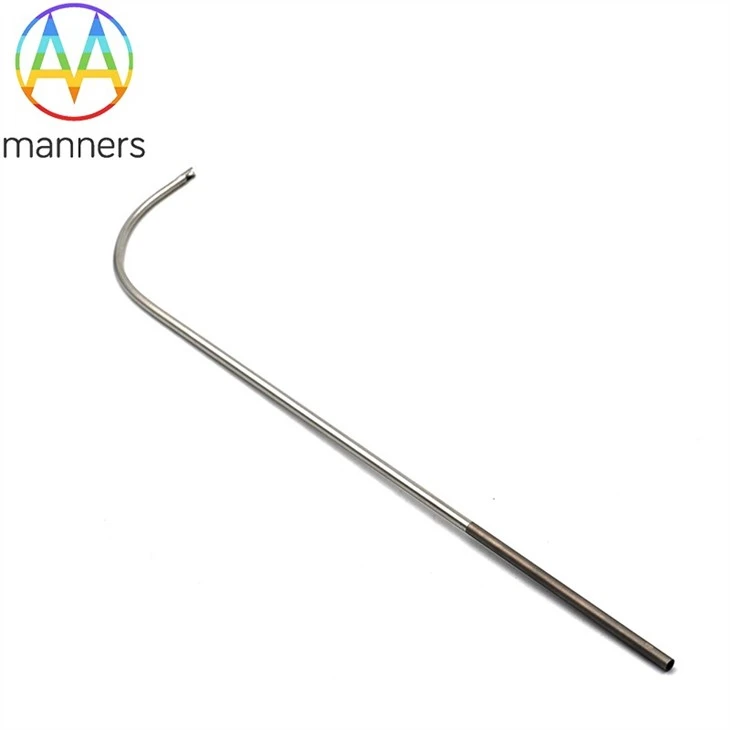

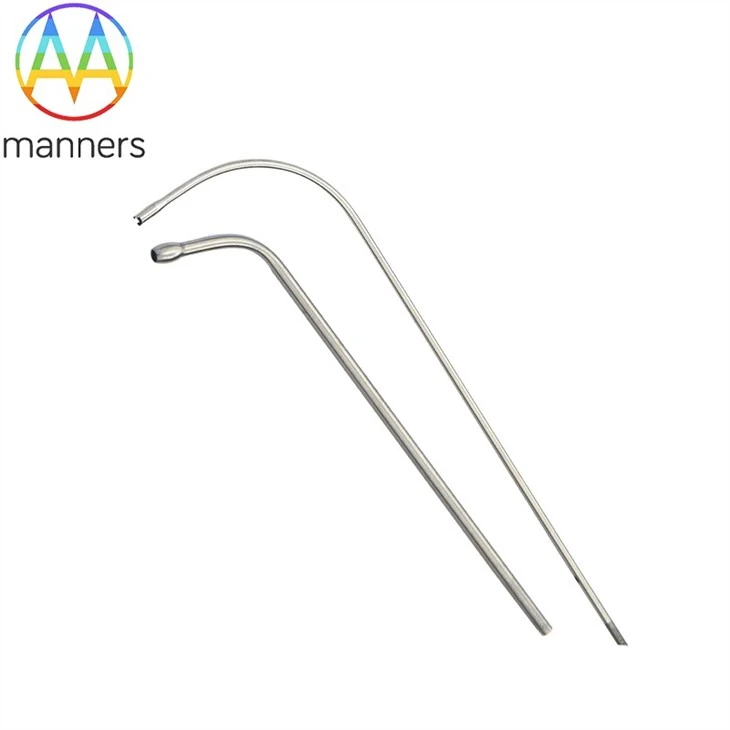

Tube For Medical Endoscope

Product specification Product show An endoscope is a photoelectric device used to probe the interior of an object being examined. It is divided into medical endoscope and industrial endoscope. Endoscope working principle is: the small probe into the internal object being checked, and then...

Send Inquiry

Description

Product specification

Product name	Tube for Medical Endoscope
material	Stainless steel, etc.
Surface Treatment	Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving
Machining Option	Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc.
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, SGS

Product show

An endoscope is a photoelectric device used to probe the interior of an object being examined. It is divided into medical endoscope and industrial endoscope.

Endoscope working principle is: the small probe into the internal object being checked, and then through the optical imaging principle (a group of lens) or electronic imaging principle (such as CCD photoelectric sensor) will be internal to the external object being checked, image transmission through testing of the eyepiece or equipment can real-time monitor to see the internal condition of test object.

In the medical aspect is mainly colonoscope, gastroscope such examination, check the human organs have diseases; In industry, non-destructive testing is mainly carried out on the inside of the engine, gearbox, pipe and other equipment that is difficult to be directly seen by human eyes to check whether there are defects (corrosion, cracks, blockage, etc.) without disassembly of the equipment.

Compared with other examination methods, endoscopy has the main advantages of no damage or minimal damage, real-time viewing, and intuitive effect. Like welling industrial endoscope for industrial use, the image is very clear, providing great convenience for industrial equipment inspection. The following picture is the scene of the detection. It can be seen that the inspector sends the probe into the device with his left hand, and then the detection image displayed on the screen of the handheld phone can be watched in real time. It is very intuitive.

131-1

132-1 133-1

100-1 3-1 102-1

Our factory

Production equipment

Equipment List	Brand	Type	Working Track	Tolerance (mm)	Quantity (Set)
CNC Milling Machine	FANUC	FANUC Machining Center	500400320	0.01	15
Brother	Brother Tapping Center	500400300	0.02	10
HATEN	Drilling & tapping machine		0.02	5
LK	Machining Center		0.02	7
Harvest Star	CNC Machine	depend on different models	0.015	10
Mazak	Vertical Machining Center	910550450+30-(-120)0-360	0.005	1
SYNTEC	Vertical Machining Center	530400300	0.01-0.005	1
Tmt	CNC Machine	depend on different models	0.01	8
Sihai	Machining Center		0.02	2
Kangcheng	Machining Center		0.02	2
Taikan	Machining Center	depend on different models	0.01	110
Renishaw	Probe		0.01	80
CNC Turning Lathe	Schutte	CNC Lathe	depend on different models	0.005	2
TSUGAMI	CNC High Precision Lathe	depend on different models	depend on different models	2
HELONG	CNC Lathe	depend on different models	0.01	20
Slotting Machine	YUYI	CNC Slotting Machine		0.01	1
