Seamless Welded Capillary Tube For Medical Endoscope
Product specification Product show The fiber endoscope system is composed of two parts: the endoscope body and the cold light source. There are two optical fiber bundles in the lens body: one is called the light beam, which is used to transmit the light generated by the cold light source to the...
Description
Product specification
Product name | seamless welded capillary tube for medical endoscope |
material | Stainless steel, etc. |
Surface Treatment | Anodizing, Sandblasting, Painting, Powder coating, Plating, Silk Printing, Brushing, Polishing, Laser Engraving |
Machining Option | Turning, grinding, milling, welding, bending, drilling, swaging, flaring, slot-cutting, stamping, deep-drawing, capping, beveling, etc. |
Custom feature | According to your 2D/3D Drawing or sample provided |
Package | Standard carton or according to customer's requirement |
Certification | ISO9001:2015, SGS |

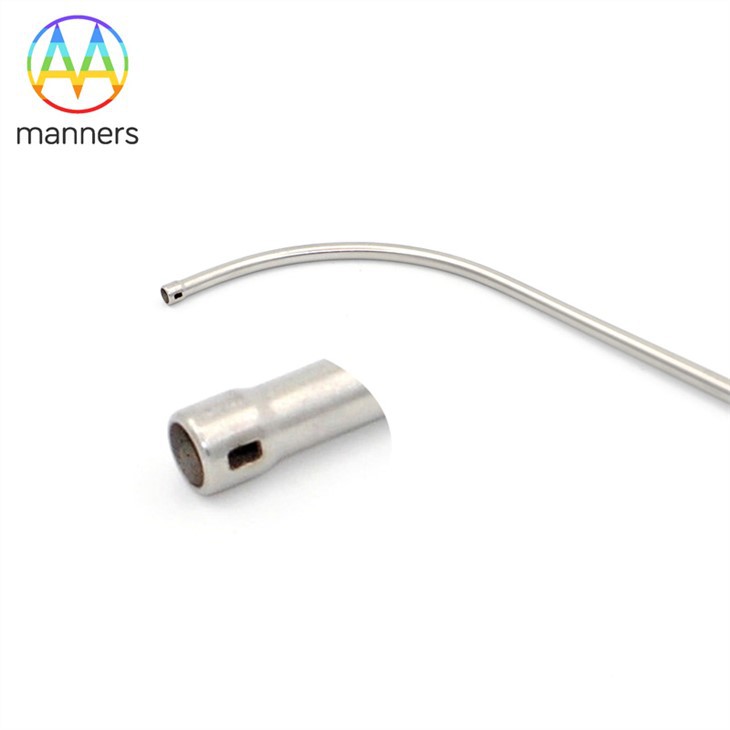

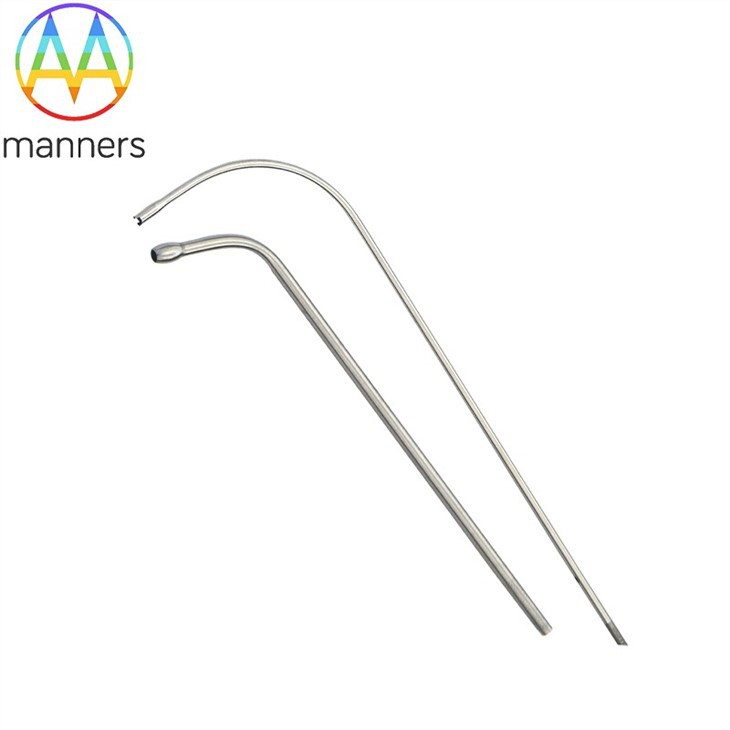

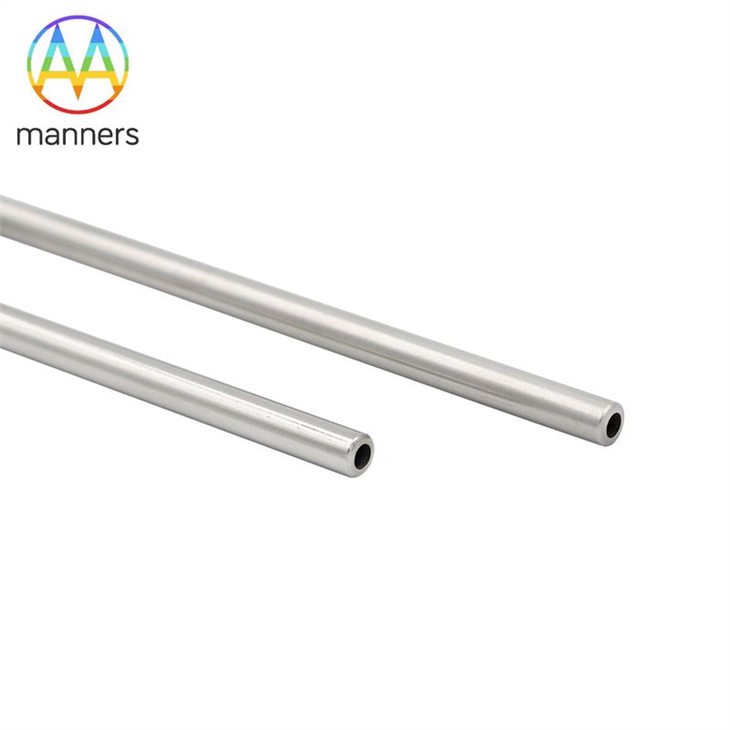

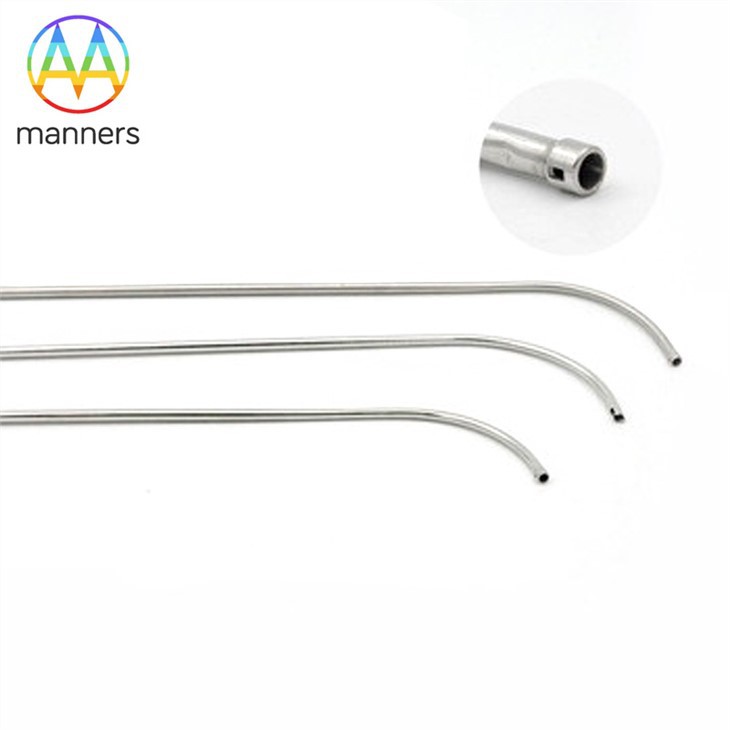

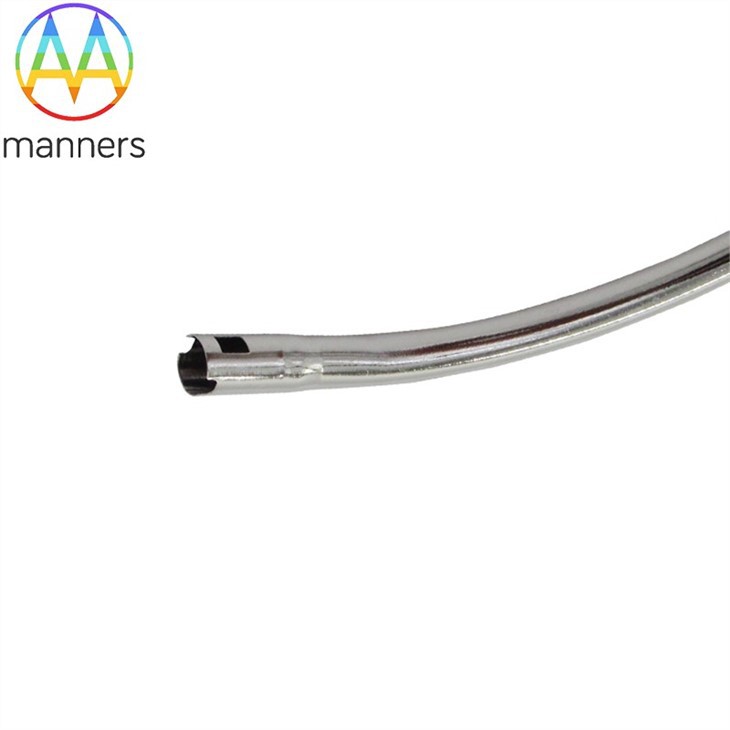

Product show
The fiber endoscope system is composed of two parts: the endoscope body and the cold light source. There are two optical fiber bundles in the lens body: one is called the light beam, which is used to transmit the light generated by the cold light source to the surface of the object to be observed. The surface of the object to be observed is illuminated; the other is called the image beam, which is to arrange tens of thousands of optical fibers with a diameter of less than 1 micron in a row in a row, one end is aimed at the eyepiece, and the other end is aimed at the observed object through the objective lens On the surface, the doctor can see the surface of the organ very intuitively through the eyepiece, which is convenient for timely and accurate diagnosis of the disease. For example, an endoscopist can look at ulcers or tumors in the stomach and use this to determine the best treatment plan.
Our factory
Production equipment
| Equipment List | Brand | Type | Working Track | Tolerance (mm) | Quantity (Set) |
CNC Milling Machine | FANUC | FANUC Machining Center | 500*400*320 | 0.01 | 15 |
Brother | Brother Tapping Center | 500*400*300 | 0.02 | 10 | |
HATEN | Drilling & tapping machine | 0.02 | 5 | ||
| LK | Machining Center | 0.02 | 7 | ||
Harvest Star | CNC Machine | depend on different models | 0.015 | 10 | |
| Mazak | Vertical Machining Center | 910*550*450*+30-(-120)*0-360 | 0.005 | 1 | |
| SYNTEC | Vertical Machining Center | 530*400*300 | 0.01-0.005 | 1 | |
| Tmt | CNC Machine | depend on different models | 0.01 | 8 | |
| Sihai | Machining Center | 0.02 | 2 | ||
| Kangcheng | Machining Center | 0.02 | 2 | ||
| Taikan | Machining Center | depend on different models | 0.01 | 110 | |
| Renishaw | Probe | 0.01 | 80 | ||
| CNC Turning Lathe | Schutte | CNC Lathe | depend on different models | 0.005 | 2 |
| TSUGAMI | CNC High Precision Lathe | depend on different models | depend on different models | 2 | |
HELONG | CNC Lathe | depend on different models | 0.01 | 20 | |
Slotting Machine | YUYI | CNC Slotting Machine | 0.01 | 1 |
Testing equipment
| Equipment Name | Brand | Specification | Tolerance(mm) | QTY |
3D-CMM | Serein | 1.5m*1m | 0.001 | 1 |
| 3D-CMM | Hexagon | 500*500 | 0.001 | 1 |
| Micro-hite | TESA | 1 | ||
| 2D-CMM | Ernst | 3 | ||
| Microscope | 45 Times | 12 |
Surface treatment equipment
| Surface Treatment Equipment List | QTY |
| Sand Blast Machine | 1 |
| Screen Printing Machine | 4 |
| Laser Engraving Machine | 3 |
Our Certification
seamless welded capillary tube for medical endoscope
