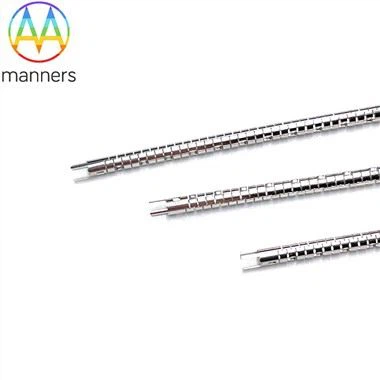

Hypo Tube

A hypo tube or hypotube offers increased flexibility, better torque characteristics, or a combination of both for catheter applications. The tubes we are able to work range from Ø 0.20mm to 20mm with a minimum 0.012mm kerf width.

Send Inquiry

Description

Product specification

Product name	Hypo Tube
material	Stainless steel, Niti, etc.
Tubing Type	Laser Cut Hypotube
Custom feature	According to your 2D/3D Drawing or sample provided
Package	Standard carton or according to customer's requirement
Certification	ISO9001:2015, ISO13485

Product show

Hypo tubes are generally made from 300 series stainless steel tubing, commonly 304 stainless steel (1.4301) and also in 316 (1.4401), 17-7PH (AMS 5528) and Nitinol.

Hypo tubes

There are many different laser cutting patterns on different hypo tubes (304,316L,Ni-Ti,L605 etc.) for all kinds of endoscopic devices for cardiovascular and urinary applications, like Continuous Spiral Cut Pattern, Bespoke Cut Patterns, Interrupted Spiral Cut Patterns and Radial Cut Patterns, etc.

Laser cut hypo tubes are generally adopted in delivery systems for minimally invasive interventions because of the combination of push, trackability, torque and kink resistance. These performance characteristics have made the hypo tube as the preferred choice for percutaneous transluminal coronary angioplasty procedure applications.

LASER CUTTING SURGICAL HYPOTUBES

With the recognition of these superior performance advantages, medical device manufacturers have been starting to use laser cut hypo tubes in new surgical application fields like abdominal aortic aneurysm, neurology, peripheral vascular interventions and imaging.

Since the laser cutting patterns are created along the hypo tube, design engineers can adjust the flexibility from the near end to the far end. In addition, the laser cut pattern can determine the wide range of performance characteristics.

Laser Cut Hypo Tubes
