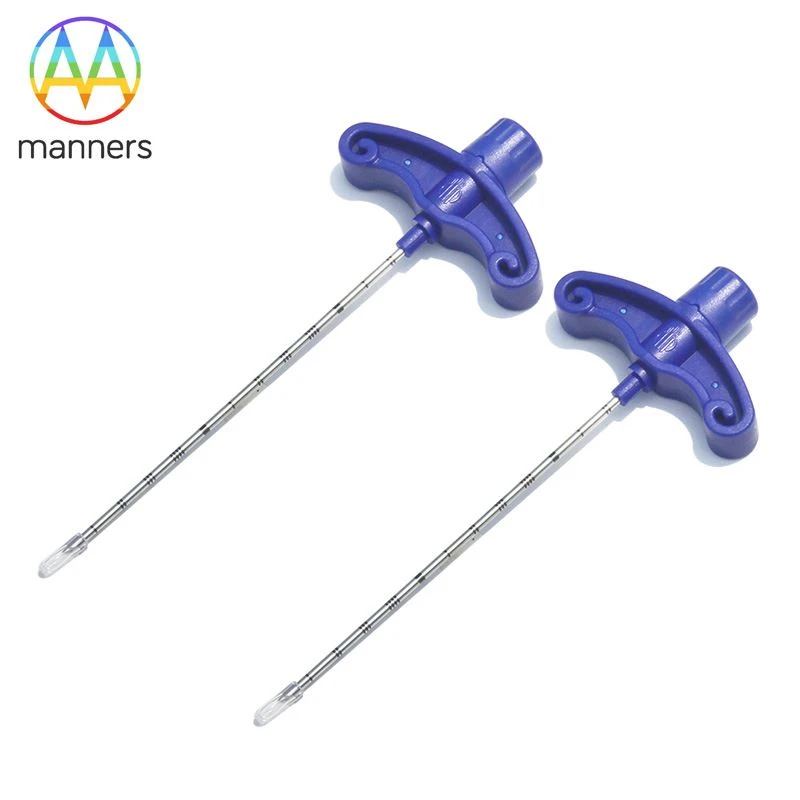

Coaxial Bone Marrow Biopsy Needle Assembly

A coaxial bone marrow biopsy needle assembly. The assembly includes a hollow cannula with a handle having an interlocking device and a trocar insertable in the cannula and having a second handle with another interlocking device which mates with the interlocking device in the cannula handle. The interlocking devices are a spring biased pin radially entering a receiving socket, and a notched projection which extends into the receiving socket. The pin has a ramped portion, and the notched projection has a rounded or conical tip which rides down the ramped portion of the pin and thereby pushes the biased pin radially out of the socket during assembly of the hollow cannula with the trocar. The assembled handles provides a smooth upper surface which fits comfortably in a palm and a lower gripping surface around which fingers easily wrap. The interlocking devices hold the handles securely together keeping the trocar within the cannula during puncture, but are easily separated thereafter.

If you have any questions, please contact us. Our company can produce various customized medical parts, medical needles, puncture needles, hypodermic needles, biopsy needles, vaccine needles, injection needles, abdominal puncture needle, hypotube with laser cut, filter needles, syringe needles, pleural puncture needle, veterinary needles, pencil point needle, ovum pick up needles, spinal needles, etc. If you need customized needle products, please contact us. We look forward to your inquiry! The quality of the products manufactured in our factory will surely satisfy you!

Please contact us if you need: zhang@sz-manners.com
